Order no. 91180114
varithek® 1/1-hp-SP (2,5)

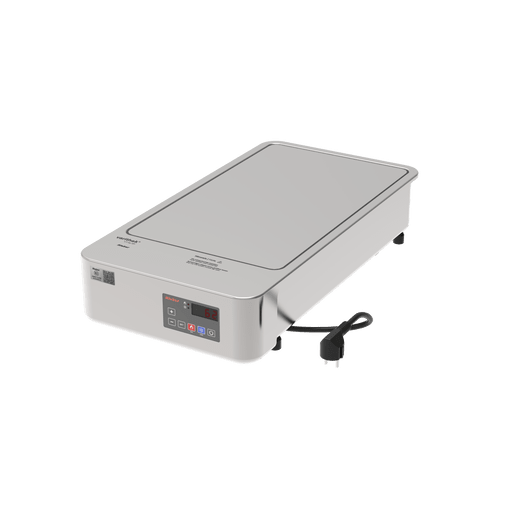

The hybrid hot/cold module made of stainless steel, full-surface energy-saving cooling/warming plate made of SWISS-PLY multi-layer material, for cooling food and keeping it hot/cold at a precise temperature, allows a quick changeover - for precise insertion in the AST/EST system modules or in the varithek® GN port.

Product profile

The table-top or slide-in module with an electronically controllable, energy-saving cooling/warming plate (full-surface) is used for cooling food and keeping it cold/hot in a GN system – for maximum flexibility in any serving situation.
This provides significant energy savings in use through the direct contact heat / cold and the plate's unique SWISS-PLY multi-layer material. The material combines aluminium in the core with conductivity (hot/cold) 10 times better than pure stainless steel and the hygienic advantages of stainless steel. This enables the fast and easy switching of the plate from refrigeration to heating mode. The digital control can be used to set the desired target temperature for the integrated cooling ducts or for heating and to maintain a constant energy supply for the desired temperature to ensure perfect quality even after a prolonged period of time.

The heat / cold can be stored even more efficiently in combination with the thermoplates® GN cooking pot, also made of SWISS-PLY multi-layer material. The watertight press-in lid and the stylish cooking and buffet lids (buffet lid for the table-top variant) offer the matching lid variants for keeping food hot/cold and for hygienic protection when serving.

All GN 1/1 varithek® modules are standardised and can therefore be flexibly combined and interchanged, for precise insertion in the AST/EST system modules or in the varithek® GN port. Also available on request as a built-in version for stationary use.

Properties
GTIN/EAN 4007537164942
Material stainless steel 1.4301 (CNS)
Weight 14 kg
Dimensions 325 x 620 x 141 mm
Heating range max. +120°C
Refrigeration range -7°C to +10°C
Refrigerant Eisfink D2
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 500 W
Plug type Safety switch (type F)
Country-specific plug on request
Cable type plain cable
Cable length 2500 mm
Protection class IPX4
Functions hybrid
Heating/cooling mode hybrid
Work surface SWISS-PLY
Field version full-surface
Order number 91180114

USP

  • Housing made of stainless steel, with a rustproof, hygienic, high-quality brushed matt finish.
  • Flush-mounted hybrid plate made of SWISS-PLY multi-layer material.
  • Deep-drawn support rails on the sides for system modules compatibility (AST, EST and GN port).
  • Immediate temperature transition and uniform temperature distribution.
  • Compatible with GN sizes, a space gain of approx. 30% compared to round containers.
  • Can be set down thanks to the 4 plastic feet on the bottom of the housing.
  • Hybrid plate is easy to clean with a polyamide scraper.
  • Splash-proof (IPX4).
The Rieber System Basis

Our versatile GN operating system

The container standard in every commercial kitchen - our high-quality and robust Gastronorm range offers you an extensive selection of different container & lid variants that you can combine and use flexibly for every application. Ideal for hygienic and standardised storage, transport and serving of food - in almost any size and depth, universally compatible in all GN systems and products.

Rieber has a large number of unique innovations in addition to the "GN classics". Like our highly efficient cooking pot thermoplates® made of conductive SWISS-PLY multi-layer material or our 100% reliable watertight plug-in lid as well as the vacuumable vaculid® lid.
