Order no. 89020101

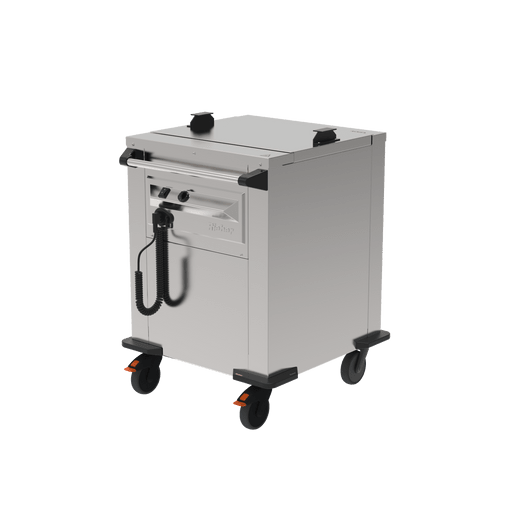

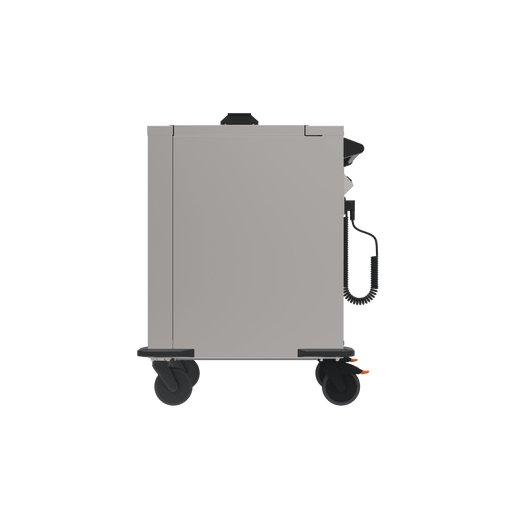

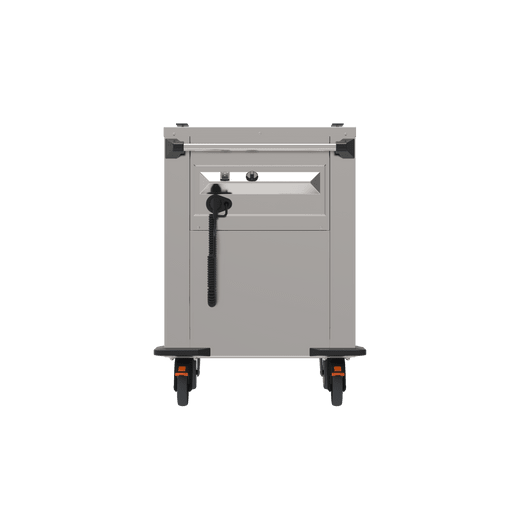

Platform dispenser - PU-GN/SV1/1

The circulating air-heated platform dispenser (for CNS baskets/GN and EN), closed, made of stainless steel, double-walled insulation, with a stainless steel lid that can be attached on the face side, with a square platform, safety pushing handle, 4 corner bumpers, stainless steel castors (2 swivel castors and 2 swivel castors with brakes).

Service videos Downloads
Product profile

The platform dispenser with a powerful, adjustable and easy-to-maintain circulating air heating system, optimal for heating, intermediate storage and transport of a wide variety of tableware. The spring power can be easily adjusted without tools according to the crockery weight.

The platform dispenser can be expanded in a variety of ways with the appropriate accessories, such as the stainless steel crockery baskets or an all-round impact bumper for extra robust protection.

Properties
GTIN/EAN 4007537004439
Material stainless steel 1.4301 (CNS)
Weight 60 kg
Dimensions 740 x 690 x 911 mm
Heating range +30°C to +100°C
Platform dimensions 535 x 410 mm
Basket/tray dimensions max. 530 x 400 mm
Lids Included (1 x in stainless steel)
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 2.240 W
Plug type Safety switch (type F)
Country-specific plug on request
Cable type spiral cable
Cable length 2500 mm
Protection class IPX5
Functions heated
Heating/cooling mode circulating air heating
Impact protection 4 corner bumpers
Wheel diameter 125 mm
Castors 2 fixed-; 2 swivel castors with brakes
Max. loading capacity 200 kg
Order number 89020101

USP

  • Rust-proof, high-quality, hygienic stainless steel, ground matt.
  • Stable, smooth-running platform.
  • Tilt- and twist-safe, with robust lifting mechanism.
  • Suitable for s/s baskets (GN & EN format) - max. 530x400mm.
  • Flexible and precise adjustability without tools.
  • Dispensing level consistently adjustable, with heat-resistant tension springs.
  • Mobile with rust-proof, lockable castors and safety pushing handle.
  • Corner bumpers for impact protection as well as impact-protected switch element.
  • With closed lid suitable for high pressure cleaner, splash-proof.
The Rieber System Basis

Our versatile GN operating system

The container standard in every commercial kitchen - our high-quality and robust Gastronorm range offers you an extensive selection of different container & lid variants that you can combine and use flexibly for every application. Ideal for hygienic and standardised storage, transport and serving of food - in almost any size and depth, universally compatible in all GN systems and products.

Rieber has a large number of unique innovations in addition to the "GN classics". Like our highly efficient cooking pot thermoplates® made of conductive SWISS-PLY multi-layer material or our 100% reliable watertight plug-in lid as well as the vacuumable vaculid® lid.

GN Containers
GN Cooking Pot
GN Lids
To the product
QR-CODE for digital reusable organization
Used with
K|POT®
varithek® acs
ZUB - Delivery Trolleys
STW - Food transport Trolleys
TWF - Tray Transort Trolleys
Rack Trolleys
Banquet Trolleys
Regiostation
Our food flow
Let us inspire you.
Accessories
To the product
Basket rilsan coat.SV 1/1 - 530x400x85mm
To the product
Basket rilsan coat.SV 1/1-530x400x120mm
To the product
Basket CNS SV 1/1 - 530x400x85mm
To the product
Basket CNS SV 1/1 - 530x400x120mm
Overview

The circulating air-heated platform dispenser (for CNS baskets/GN and EN), closed, made of stainless steel, double-walled insulation, with a stainless steel lid that can be attached on the face side, with a square platform, safety pushing handle, 4 corner bumpers, stainless steel castors (2 swivel castors and 2 swivel castors with brakes).
