Order no. 89020107

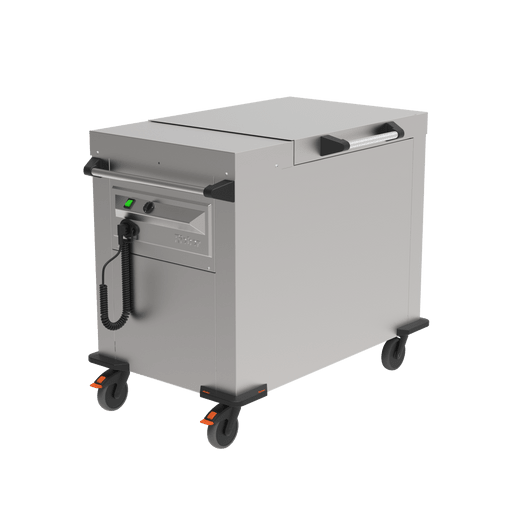

Menu tray dispenser - PU-M2/1

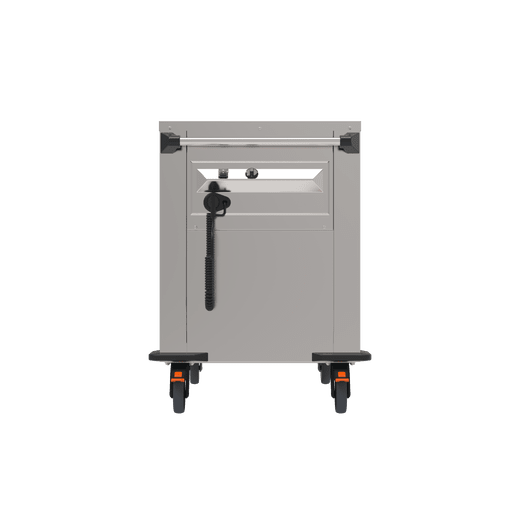

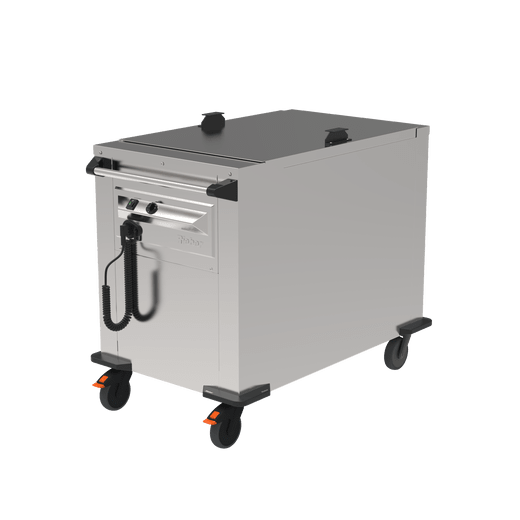

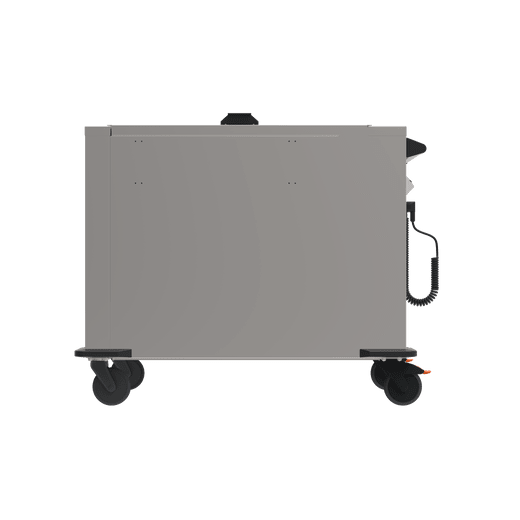

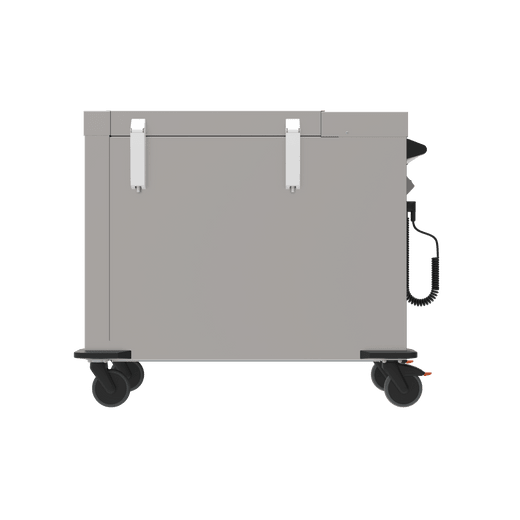

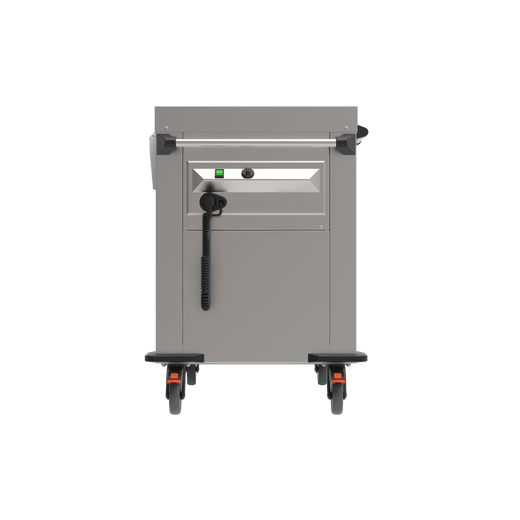

The circulating air-heated meal tray dispenser, closed, made of stainless steel, for use with 8 CNS carrier baskets for heating 6 meal/food trays per basket, double-walled insulation, with a stainless steel hinged lid that can be folded upwards, with a support frame, safety pushing handle, 4 corner bumpers, stainless steel castors (2 swivel castors & 2 swivel castors with brakes).

Properties
GTIN/EAN 4007537039103
Material stainless steel 1.4301 (CNS)
Weight 90 kg
Dimensions 1148 x 744 x 911 mm
Heating range +50°C to +185°C
Platform dimensions 535 x 660 mm
Basket/tray dimensions max. 530 x 650 mm
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 2.250 W
Plug type Safety switch (type F)
Cable type spiral cable
Cable length 2.500 mm
Protection class IPX5
Functions heated
Heating/cooling mode circulating air heating
Impact protection 4 corner bumpers
Wheel diameter 125 mm
Castors 2 fixed-; 2 swivel castors with brakes
Max. loading capacity 200 kg
Order number 89020107
