Order no. 85020424
thermoport® K 1000 circul.heated-black

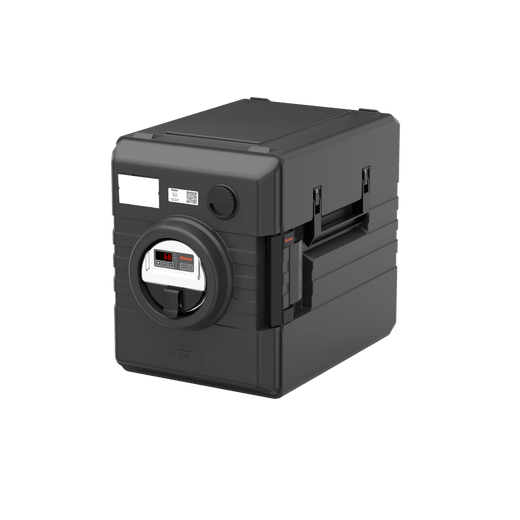

Circulating air-heated frontloader transport box made of plastic, with precise digital temperature regulation, individually adjustable from +20°C to max. + 85°C, double-walled and tightly welded, 12 pairs of rails, dishwasher-safe without the heating system (up to +90°C) - for the safe transport of food in GN containers (content with GN: max. 52 L).

Purchase Product and Spare Parts in Shop
Product profile

The stackable frontloader with heatable, precise and powerful circulating air heating (digitally controllable) is used for the safe transport of food in a GN system and for keeping the food hot. The mobile kitchen for the best food quality and complete transport safety.

Space-efficient configuration with GN containers and GN thermoplates® in combination with the transport-safe, watertight press-in lid or in a vacuum with the vaculid® lid for low-temperature cooking. Additional cooling option is possible with the insertion of GN 1/1 cooling pellets; the cold air is distributed evenly in the interior in pure circulating air mode.

Rieber thermoport® made of plastic and stainless steel can be stacked together and placed on the transport or serving trolleys – for slip-resistant and safe transport.

Retrofittable with a CHECK sensor for seamless and automatic temperature documentation during transport. Clear identification and connection to the CHECK CLOUD are possible with the QR code.

Properties
GTIN/EAN 4007537119201
Production Made in Germany
Material polypropylene
Dimensions 688 x 435 x 561 mm
Weight 17,6 kg
Dishwasher safe until 90 °C with removed heating
Heating range +20°C to +85°C
Ambient temperature -20°C to +100°C
Support rails 12
Distance between supports 36 mm
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 0,81 kW
Plug type Safety switch (type F)
Country-specific plug on request
Cable type plain cable
Cable length 2000 mm
Protection class IPX4
Functions heated
Heating/cooling mode circulating air heating
Colour black
Capacity with GN containers 52 L
Order number 85020424

USP

  • Lightweight, robust and pore-free plastic, double-walled and tightly welded.
  • Made of durable, impact resistant and food safe polypropylene.
  • Body & door in sandwich construction, seamless foamed, torsion-resistant, highest stability.
  • Well insulated, low loss of heat/cold.
  • Uniform heat distribution, even when fully loaded.
  • Steam slider for moisture regulation.
  • Interchangeable door options (door neutral / convection heated) for maximum functional flexibility.
  • Problem-free temperature maintenance (cold & warm) according to DIN EN 12571 No. 5.1.
  • Ergonomic, hinged handles and high-quality snap locks.
  • Suitable for outdoor use, splash-proof (IPX4).
  • Replaceable Floor protection rails & all screwed parts replaceable. and stacking corners.
  • All handles, runners, hinges & latches made of high strength PA 6 GF 30.
  • Removable heating element and door, quick and easy cleaning.
  • Dishwasher-safe up to +90°C without the heating system and splash-proof (IPX5).
  • Very good chemical resistance (cleaning, disinfection).
Rieber GN - Your system basis: flexible. durable. digital.

Our GN operating system is the standard in every commercial kitchen. With a wide range of Gastronorm containers and lids, it offers maximum flexibility for storage, transport, serving and more - hygienic, robust and available in many sizes and depths.

In addition to the tried and tested GN classics, Rieber focuses on innovation: from the efficient thermoplates® cooking pot made of SWISS-PLY multi-layer material to the 100% watertight push-fit lid and the vacuumable vaculid® lid. New: the revolutionary GN auto container, which saves around 60 % of storage space and enables automated processes via robotisation.

We use the latest laser technology to personalise GN containers & lids with your individual logo - for clear recognition, a professional look and more individuality in the kitchen.

  • GN CONNECT - digitally organised in the CHECK TRACE reusable system

The lasered smart Rieber QR code, with the GS1 Digital Link - ensures full transparency, traceability and error-free & time-saving order picking.
