Order no. 85010708

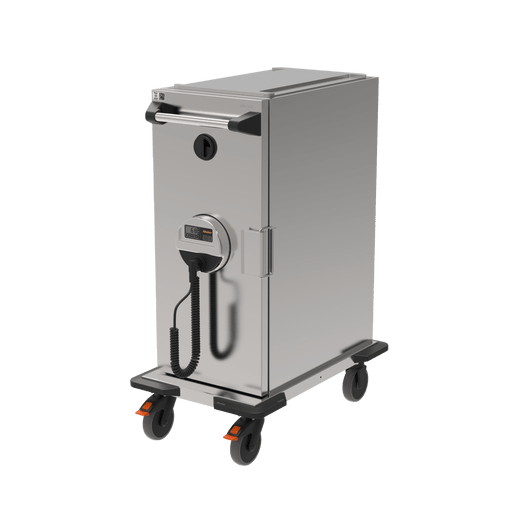

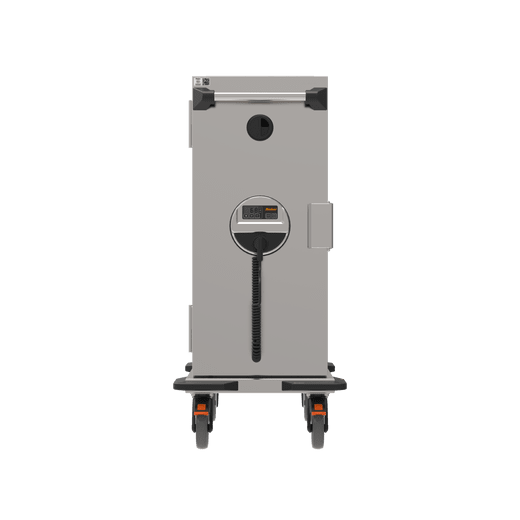

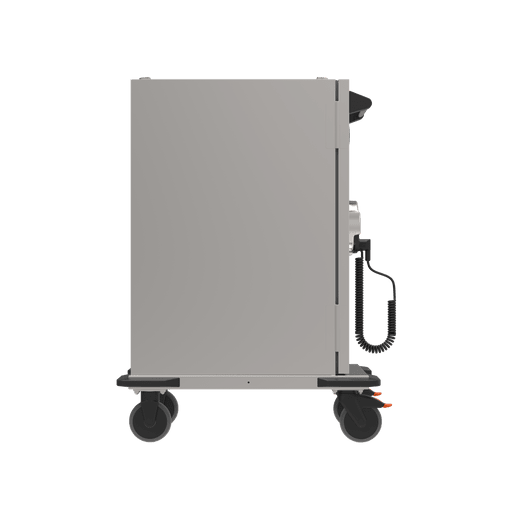

thermoport® CNS 2000 circulating heat

Circulating air-heated frontloader transport trolley made of stainless steel, with controllable circulating air heating (max. +100°C), double-walled and tightly welded, with 20 seamlessly deep-drawn pairs of rails, interior in hygienic design H3 - for the safe transport of food in GN containers (content with GN: max. 89,7 L).

Product profile

The mobile frontloader with heatable, precise and powerful circulating air heating (digitally controllable) is used for the safe transport of food in a GN system and for keeping the food hot. The mobile kitchen for the best food quality and complete transport safety.

Space-efficient configuration with GN containers and GN thermoplates® in combination with the transport-safe, watertight press-in lid or in a vacuum with the vaculid® lid for low-temperature cooking. Additional cooling option is possible with the insertion of GN 1/1 cooling pellets; the cold air is distributed evenly in the interior in pure circulating air mode.

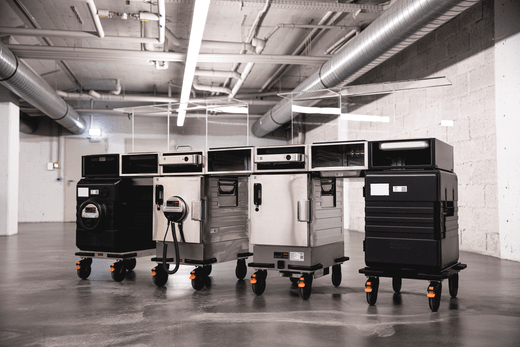

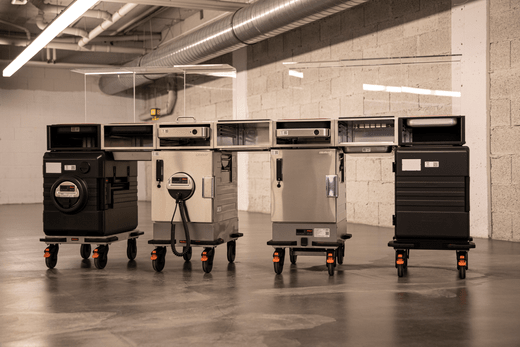

Rieber thermoport® made of plastic and stainless steel can be stacked together and placed on the transport or serving trolleys – for slip-resistant and safe transport. In addition, the transport securing device is particularly recommended for the thermoport® stainless steel.

Retrofittable with a CHECK sensor for seamless and automatic temperature documentation during transport. Clear identification and connection to the CHECK CLOUD are possible with the QR code.

Properties
GTIN/EAN 4007537051303
Material stainless steel 1.4301 (CNS)
Weight 44 kg
Dimensions 492 x 769 x 1078 mm
Heating range max. +95°C
Ambient temperature -20°C to +100°C
GN size GN 1/1
Support rails 20
Distance between supports 37 mm
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 763 W
Plug type Safety switch (type F)
Country-specific plug on request
Cable type spiral cable
Cable length 1500 mm
Protection class IPX5
Functions heated
Heating/cooling mode circulating air heating
Impact protection 4 corner bumpers
Wheel diameter 125 mm
Castors 2 fixed-; 2 swivel castors
Castor type Rustproof
Max. loading capacity 150 kg
Capacity with GN containers 89,7 L
Hygienic design H3
Order number 85010708

USP

  • Rustproof, high-quality, hygienic stainless steel (interior and exterior).
  • Interior tightly welded with seamlessly deep-drawn support rails in hygienic design H3.
  • Double-walled insulation, low loss of heat/cold.
  • Uniform heat distribution, even when fully loaded.
  • Steam slider for moisture regulation.
  • Mobile with robust, fixable castors and a push handle.
  • Bumpers for impact protection.
  • Suitable for outdoor use, splash-proof (IPX4).
  • Removable door seal/heating system, quick and easy cleaning.
  • High-pressure cleaner can be used on the interior without the heating system, splash-proof (IPX5).
