Order no. 85010807

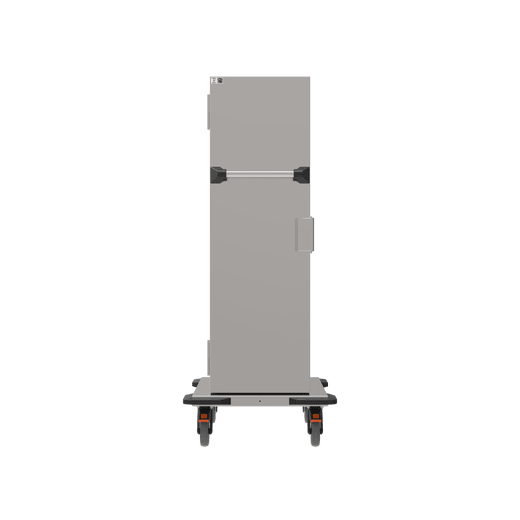

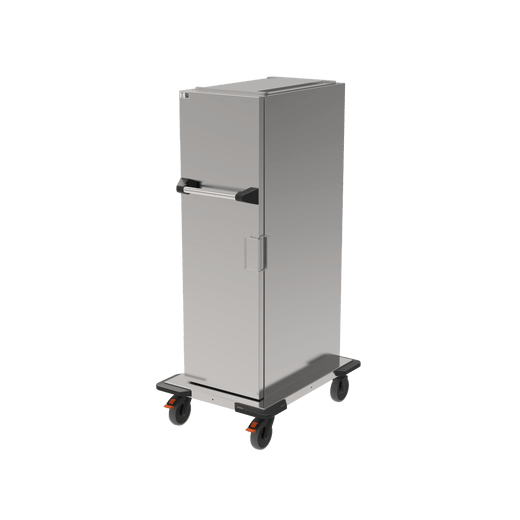

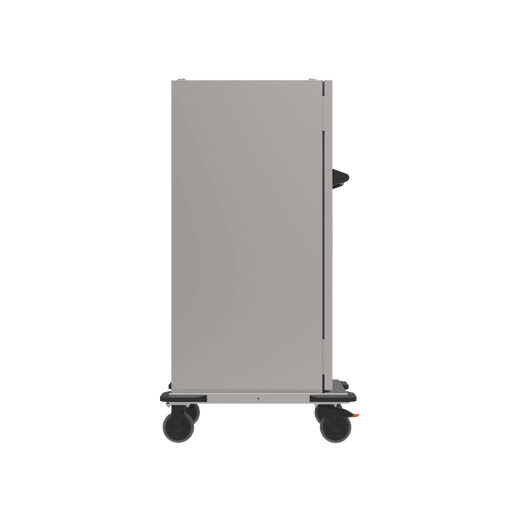

thermoport® CNS 3000 unheated

Unheated frontloader transport trolley made of stainless steel, double-walled and tightly welded, with 30 seamlessly deep-drawn pairs of rails, interior in hygienic design H3 - for the safe transport of food in GN containers (content with GN: max. 130 L).

Product profile

The mobile frontloader is used for the safe transport of food in a GN system and for keeping the food hot and cold. For the best food quality and complete transport safety.

Space-efficient configuration with GN containers and GN thermoplates® in combination with the transport-safe, watertight press-in lid or in a vacuum with the vaculid® lid. GN 1/1 heating or cooling pellets can be inserted accordingly for passively keeping food hot and cold. Hot and cold food can be insulated separately during transport thanks to the insulated divider.

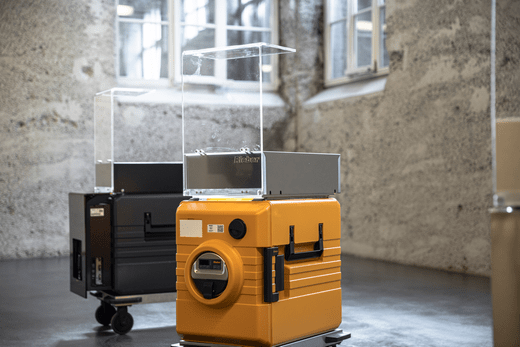

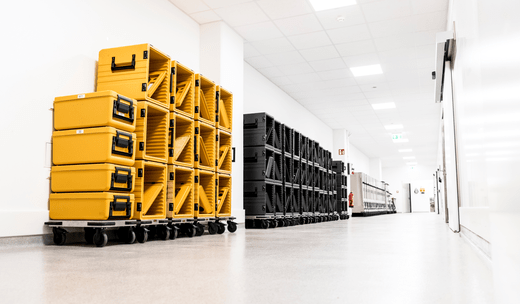

Rieber thermoport® made of plastic and stainless steel can be stacked together and placed on the transport or serving trolleys – for slip-resistant and safe transport.

Retrofittable with a CHECK sensor for seamless and automatic temperature documentation during transport. Clear identification and connection to the CHECK CLOUD are possible with the QR code.

Properties
GTIN/EAN 4007537051341
Material stainless steel 1.4301 (CNS)
Weight 60 kg
Dimensions 592 x 769 x 1448 mm
Ambient temperature -20°C to +100°C
GN size GN 1/1
Support rails 30
Distance between supports 37 mm
Protection class IPX5
Functions neutral
Heating/cooling mode neutral
Impact protection 4 corner bumpers
Wheel diameter 125 mm
Castors 2 fixed-; 2 swivel castors
Castor type Rustproof
Max. loading capacity 150 kg
Capacity with GN containers 130 L
Hygienic design H3
Order number 85010807

USP

  • Rustproof, high-quality, hygienic stainless steel (interior and exterior).
  • Interior tightly welded with seamlessly deep-drawn support rails in hygienic design H3.
  • Double-walled insulation, low loss of heat/cold.
  • Mobile with robust, fixable castors and a push handle.
  • Bumpers for impact protection.
  • Door with a fitted, insulated pushing handle.
  • Suitable for outdoor use.
  • Removable door seal, quick and easy cleaning.
  • Suitable for cleaning with a high-pressure cleaner.
The Rieber System Basis

Our versatile GN operating system

The container standard in every commercial kitchen - our high-quality and robust Gastronorm range offers you an extensive selection of different container & lid variants that you can combine and use flexibly for every application. Ideal for hygienic and standardised storage, transport and serving of food - in almost any size and depth, universally compatible in all GN systems and products.

Rieber has a large number of unique innovations in addition to the "GN classics". Like our highly efficient cooking pot thermoplates® made of conductive SWISS-PLY multi-layer material or our 100% reliable watertight plug-in lid as well as the vacuumable vaculid® lid.
