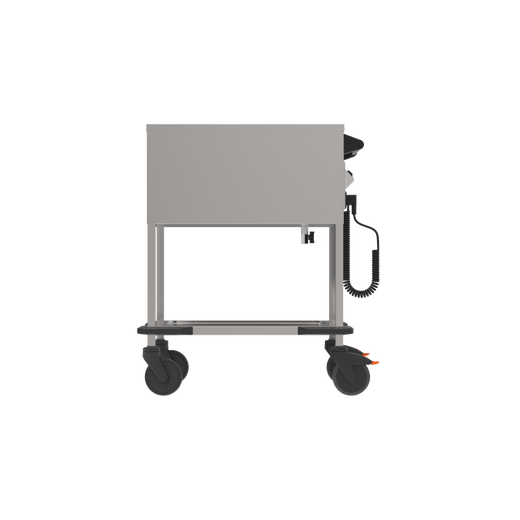

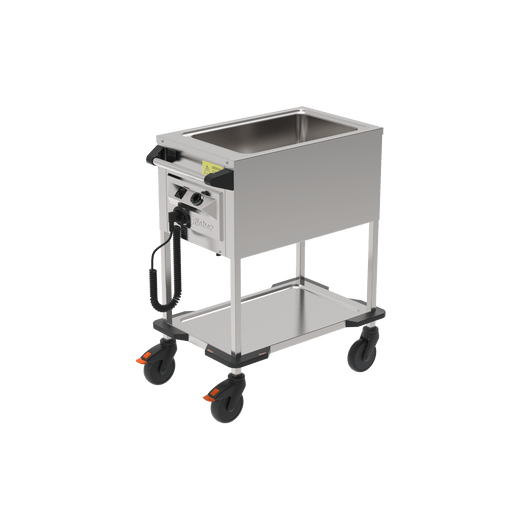

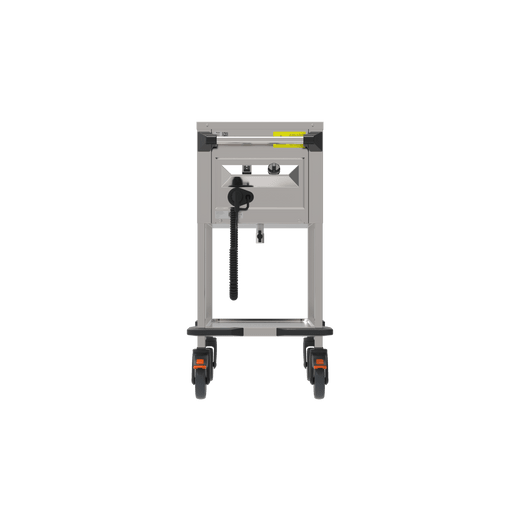

ZUB 1 well - handle face side // Products

GTIN/EAN	4007537004040
Production	Made in Germany
Material	stainless steel 1.4301
Weight	22,85 kg
Dimensions	715 x 475 x 900 mm
Heating range	+30°C to +110°C
GN depth	200 mm
Rated voltage	1N AC 230 V 50/60 Hz
Connected load	470 W
Plug type	Safety switch (type F)
Country-specific plug	on request

GTIN/EAN

4007537004040

Production

Made in Germany

Material

stainless steel 1.4301

Weight

22,85 kg

Dimensions

715 x 475 x 900 mm

Heating range

+30°C to +110°C

GN depth

200 mm

Rated voltage

1N AC 230 V 50/60 Hz

Connected load

470 W

Plug type

Safety switch (type F)

Country-specific plug

on request

Cable type	spiral cable
Cable length	2500 mm
Protection class	IPX4
Functions	heated
Heating/cooling mode	statically heated
Impact protection	4 corner bumpers
Wheel diameter	125 mm
Castors	2 fixed-; 2 swivel castors with brakes
Castor type	Rustproof
Order number	88160101

Cable type

spiral cable

Cable length

2500 mm

Protection class

IPX4

Functions

heated

Heating/cooling mode

statically heated

Impact protection

4 corner bumpers

Wheel diameter

125 mm

Castors

2 fixed-; 2 swivel castors with brakes

Castor type

Rustproof

Order number

88160101

USP

Rustproof, high-quality, hygienic stainless steel.

Rounded worktop, turned down all-round, protection against the ingress of dirt/water.

Deep-drawn heated well, seamlessly welded.

Insulated on all sides, low heat loss.

Mobile with robust, fixable castors and a pushing handle.

Corner bumpers for impact protection as well as a shockproof switching element.

Integrated drainage cock, quick and easy cleaning.
