Order no. 88160403
ZUB 4 wells - handle long side

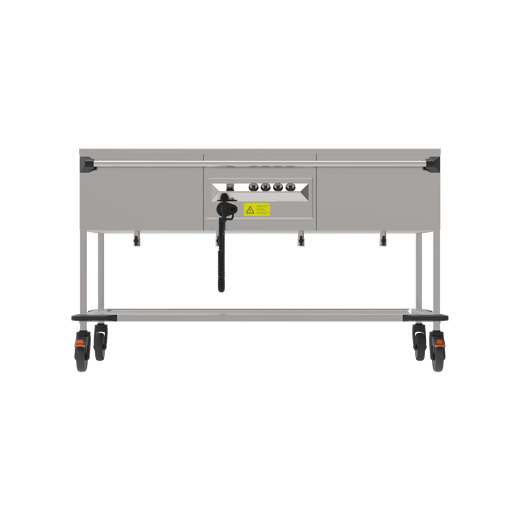

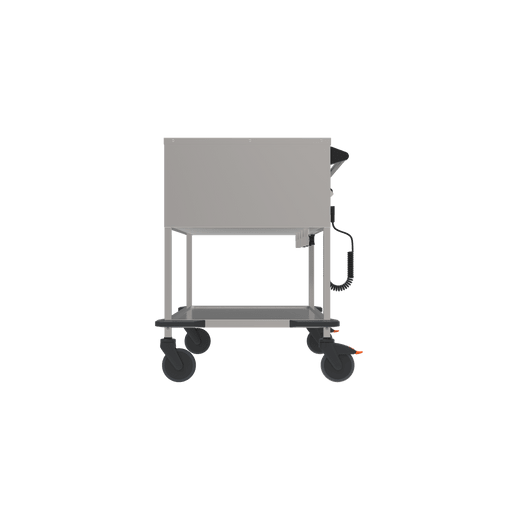

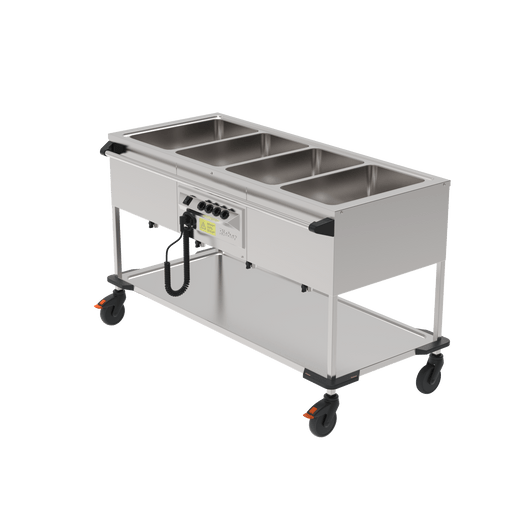

The delivery trolley made of stainless steel with 4 deep-drawn GN 1/1 heated wells on top, wet and dry heating, insulated on all sides, with a welded stainless steel shelf at the bottom - stainless steel castors, 2 swivel castors and 2 swivel castors with brakes.

Product profile

The robust stainless steel trolley with four separately controllable, electrically heated GN 1/1 heated wells is used for the safe transport, distribution on the conveyor and serving of food in a GN system. The universal delivery trolley for the best food quality at distribution stations. Can be heated reliably wet and dry; dry heating provides significant energy savings and less cleaning of the wells is required.

Space-efficient configuration with GN containers and GN thermoplates® in combination with the transport-safe, watertight press-in lid.
The functions can be customised to suit the requirements, with a gantry (lighting/heat), a hinged shelf on the long/face side, as well as a hinged work surface on the face side. An additional usable work surface in the substructure also provides space for thermoport® 50 and 100 transport boxes for the immediate refilling of food in a GN system thanks to the stable shelf.

For a complete solution on a food distribution conveyor in combination with other mobile products, such as the thermoport® made of plastic and stainless steel, various dispensers, tray and banquet trolleys as well as transport and serving trolleys.

Properties
GTIN/EAN 4007537004163
Production Made in Germany
Material stainless steel 1.4301
Dimensions 1520 x 717 x 900 mm
Weight 56,94 kg
Heating range +30°C to +110°C
GN depth 200 mm
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 3.060 W
Plug type Safety switch (type F)
Country-specific plug on request
Cable type spiral cable
Cable length 2500 mm
Protection class IPX4
Functions heated
Heating/cooling mode statically heated
Impact protection 4 corner bumpers
Wheel diameter 125 mm
Castors 2 fixed-; 2 swivel castors with brakes
Castor type Rustproof
Order number 88160403

USP

  • Rustproof, high-quality, hygienic stainless steel.
  • Rounded worktop, turned down all-round, protection against the ingress of dirt/water.
  • Deep-drawn heated well, seamlessly welded.
  • Insulated on all sides, low heat loss.
  • Mobile with robust, fixable castors and a pushing handle.
  • Corner bumpers for impact protection as well as a shockproof switching element.
  • Integrated drainage cock, quick and easy cleaning.
Rieber GN - Your system basis: flexible. durable. digital.

Our GN operating system is the standard in every commercial kitchen. With a wide range of Gastronorm containers and lids, it offers maximum flexibility for storage, transport, serving and more - hygienic, robust and available in many sizes and depths.

In addition to the tried and tested GN classics, Rieber focuses on innovation: from the efficient thermoplates® cooking pot made of SWISS-PLY multi-layer material to the 100% watertight push-fit lid and the vacuumable vaculid® lid. New: the revolutionary GN auto container, which saves around 60 % of storage space and enables automated processes via robotisation.

  • YourLogo GN - As unique as your business

We use the latest laser technology to personalise GN containers & lids with your individual logo - for clear recognition, a professional look and more individuality in the kitchen.

  • GN CONNECT - digitally organised in the CHECK TRACE reusable system

The lasered smart Rieber QR code, with the GS1 Digital Link - ensures full transparency, traceability and error-free & time-saving order picking.

Our food flow
Let us inspire you.
Accessories
To the product
Core Temperature Sensor CHECK
To the product
QR Code Sticker for CHECK CLOUD
Overview

The delivery trolley made of stainless steel with 4 deep-drawn GN 1/1 heated wells on top, wet and dry heating, insulated on all sides, with a welded stainless steel shelf at the bottom - stainless steel castors, 2 swivel castors and 2 swivel castors with brakes.
