Order no. 89020103
Platform dispenser - PU-GN2/1

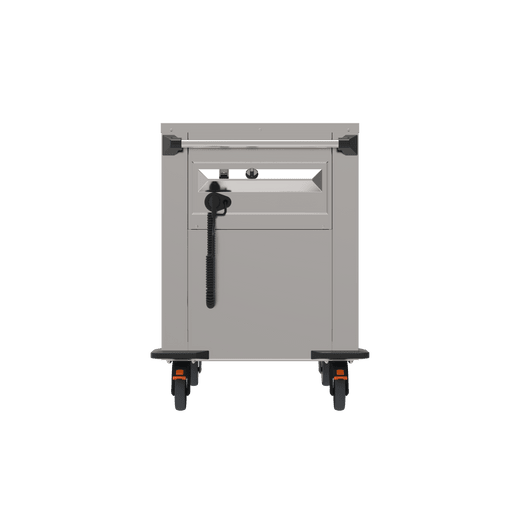

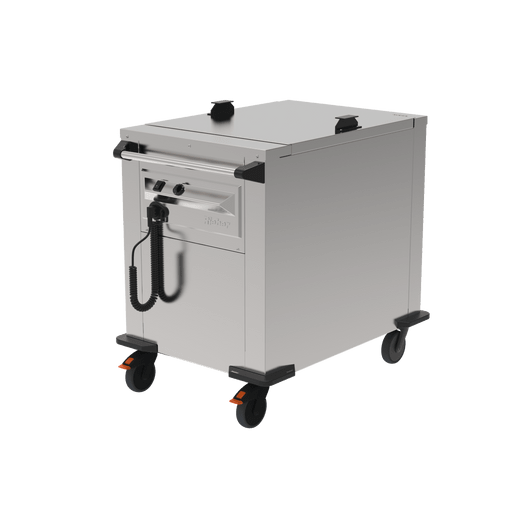

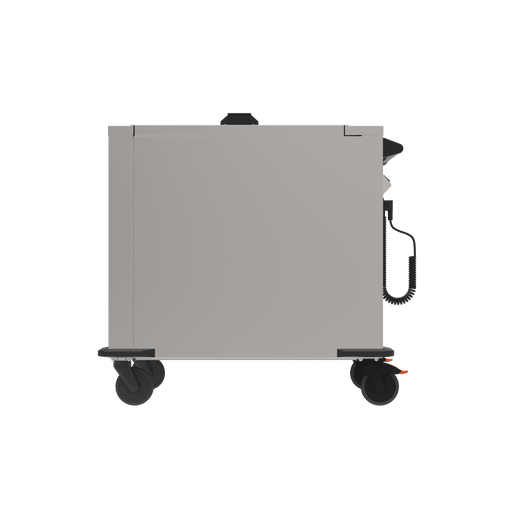

The circulating air-heated platform dispenser (for CNS baskets/GN), closed, made of stainless steel, double-walled insulation, with a stainless steel lid that can be attached on the face side, with a support frame, safety pushing handle, 4 corner bumpers, stainless steel castors (2 swivel castors and 2 swivel castors with brakes).

Service videos Downloads
Product profile

The platform dispenser with a powerful, adjustable circulating air heater for the heating, interim storage and transport of different crockery items* on a metal sheet or in 5 or 8 stainless steel crockery baskets*. The spring force can be easily adjusted by hand according to the crockery weight. Also with integrated overheating protection for perfect safety and including a polycarbonate lid for hygienic protection of the crockery items*.

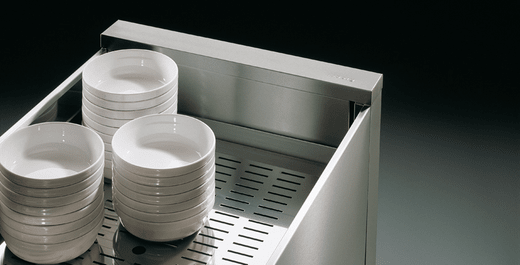

As an accessory, the stainless steel crockery baskets or the GN 2/1 metal sheet with slit perforations so that the crockery items can be stacked directly on the support frame. Also extendible with complete all-round impact protection for extra robustness.

Properties
GTIN/EAN 4007537004835
Material stainless steel 1.4301 (CNS)
Weight 70,2 kg
Dimensions 990 x 690 x 911 mm
Heating range +30°C to +100°C
Platform dimensions 535 x 660 mm
Basket/tray dimensions max. 530 x 650 mm
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 2.240 W
Plug type Safety switch (type F)
Country-specific plug on request
Cable type spiral cable
Cable length 2500 mm
Protection class IPX5
Functions heated
Heating/cooling mode circulating air heating
Impact protection 4 corner bumpers
Wheel diameter 125 mm
Castors 2 fixed-; 2 swivel castors with brakes
Max. loading capacity 200 kg
Order number 89020103

USP

  • Stainless steel, high quality, hygienic, satin finish.
  • Stable, smooth-running rectangular platform.
  • Tilt and tilt resistant, with robust stacking mechanism.
  • Double-wall insulated body, low heat loss.
  • Flexible and precise adjustment by hand.
  • Output height consistently adjustable, with heat-resistant tension springs.
  • Robustly protected with front-hinged stainless steel lid.
  • Mobile with rustproof, lockable castors and safety push handle.
  • Shock corners for impact protection as well as shock-protected switching element.
  • Outside with closed lid suitable for high-pressure cleaners, jet-proof (IPX5).
