Order no. 88230406
banquet tr. 2/1 refrig. R290, rails 115

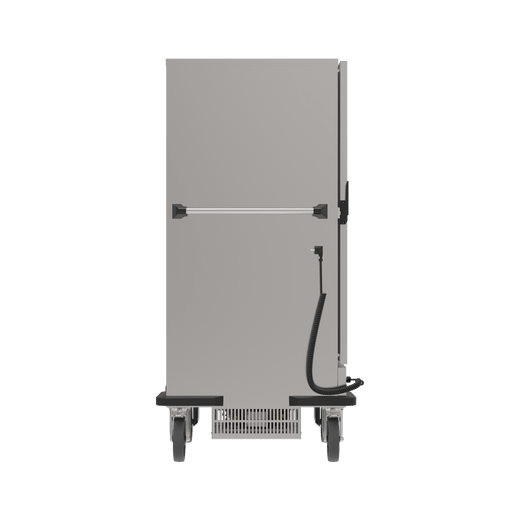

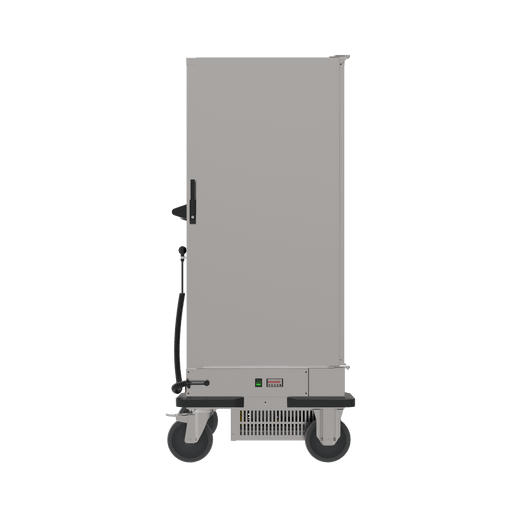

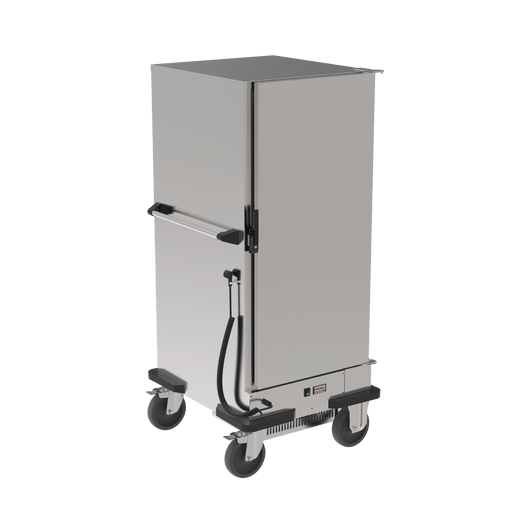

The convection-cooled GN 2/1 banquet trolley made of stainless steel, seamless deep-drawn support ledges (115 mm) with tilt protection for GN grids/containers, all-round roof gallery, double-walled insulated doors with push handle on the front - with 4 corner bumpers, stainless steel castors, 2 fixed castors, 2 swivel castors.

Product profile

The robust banquet trolley with precise and powerful compressor cooling (digitally controllable) and a circulating air fan is used for the safe transport of food, for keeping ready-to-serve food hot and for serving food at the same time in a GN system or plate system. For more flexibility and perfect food quality for any banquet - from the portioning to the consumption. Reliable cooling of the interior by the integrated evaporator at the top and the refrigeration machine with condensation water evaporation at the bottom.

GN 2/1 grilles and GN containers can be inserted directly into the cupboard compartment. The pre-portioned plates can be transported on the grilles with an additional plate carrier (for 6 plates) with cloches for optimal protection of the food.

Thanks to the space-efficient configuration with GN containers and GN thermoplates® in combination with the transport-safe, watertight press-in lid or in a vacuum with the vaculid® lid.

Retrofittable with a CHECK sensor for seamless and automatic temperature documentation during transport. Clear identification and connection to the CHECK CLOUD are possible with the QR code.

Properties
GTIN/EAN 4007537168742
Production Made in Germany
Material stainless steel 1.4301
Dimensions 801 x 876 x 1765 mm
Weight 143 kg
Suitable GN sizes GN 2/1
Support rails 11
Distance between supports 115 mm
Refrigeration range +2°C to +8°C
Refrigerant R290
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 0,6 kW
Plug type Safety switch (type F)
Country-specific plug on request
Cable type spiral cable
Cable length 2000 mm
Protection class IPX2
Functions refridgerated
Heating/cooling mode chilled
Impact protection 4 corner bumpers
Wheel diameter 200 mm
Castors 2 fixed-; 2 swivel castors
Castor type Rustproof
Max. loading capacity 120 kg
Order number 88230406

USP

  • Rustproof, high-quality, hygienic stainless steel (interior and exterior).
  • Interior with seamlessly deep-drawn support rails. tilt-proof.
  • Double-walled insulation, low loss of cold.
  • Uniform cooling distribution, even when fully loaded.
  • Mobile with robust, rustproof, fixable castors.
  • Deep-drawn recessed grip and an integrated pushing handle.
  • Self-closing door with a magnetic frame, no freezing due to the door frame heating.
  • Corner bumpers for impact protection and a shockproof switching element.
  • Quick and easy cleaning, with a damp cleaning cloth, drip-proof (IPX2).
Rieber GN - Your system basis: flexible. durable. digital.

Our GN operating system is the standard in every commercial kitchen. With a wide range of Gastronorm containers and lids, it offers maximum flexibility for storage, transport, serving and more - hygienic, robust and available in many sizes and depths.

In addition to the tried and tested GN classics, Rieber focuses on innovation: from the efficient thermoplates® cooking pot made of SWISS-PLY multi-layer material to the 100% watertight push-fit lid and the vacuumable vaculid® lid. New: the revolutionary GN auto container, which saves around 60 % of storage space and enables automated processes via robotisation.

We use the latest laser technology to personalise GN containers & lids with your individual logo - for clear recognition, a professional look and more individuality in the kitchen.

  • GN CONNECT - digitally organised in the CHECK TRACE reusable system

The lasered smart Rieber QR code, with the GS1 Digital Link - ensures full transparency, traceability and error-free & time-saving order picking.
