Order no. 88131423

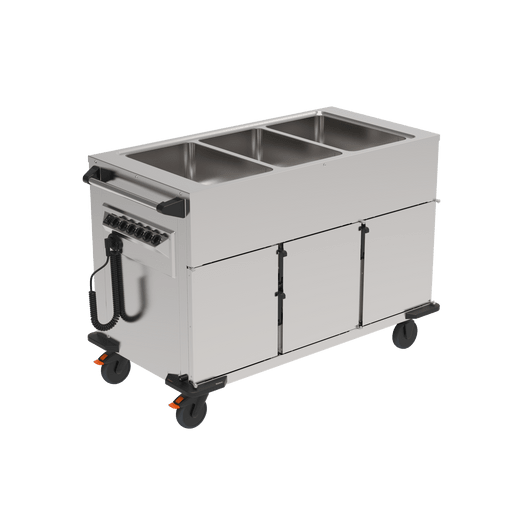

Trolley Norm III - 3, heated

The food transport trolley made of stainless steel, 3 deep-drawn heated wells on top, 3 heated GN 1/1 cupboard cabinets at the bottom (H3, each with 8 pairs of support rails) - with 2 fixed castors and 2 swivel castors with a double brake.

Product profile

The robust food transport trolley, with three GN 1/1 heated wells on top and with three cupboard cabinets at the bottom, all separately controllable and electrically heated, is used for the safe transport of food, for keeping food hot and cold and for serving food in a GN system. For the best food quality in food distribution. Can be heated reliably wet and dry; dry heating provides significant energy savings and less cleaning of the wells is required.

Space-efficient configuration with GN containers and GN thermoplates® in combination with the transport-safe, watertight press-in lid. The cupboard cabinets can be used as a passive cooling option through the insertion of GN 1/1 cooling pellets and can also be used neutrally for additional storage space. The retractable insert frame offers even more flexibility when configuring the interior in a GN system.

External functions can be customised depending on the requirements, with a gantry (light/heat) or a sliding/hinged lid instead of a gantry, hinged storage surface on the face side, tray slide or lid holder for mounting on the guest side.

Properties
GTIN/EAN 4007537112486
Material stainless steel 1.4301 (CNS)
Weight 84,7 kg
Dimensions 1314 x 680 x 900 mm
Heating range +30°C to +90°C
Number of compartments 3
Support rails 24
Distance between supports 37 mm
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 2.820 W
Plug type Safety switch (type F)
Cable type spiral cable
Cable length 2000 mm
Protection class IPX4
Functions heated
Heating/cooling mode statically heated
Impact protection 4 corner bumpers
Wheel diameter 125 mm
Castors 2 fixed-; 2 swivel castors
Max. loading capacity 275 kg
Hygienic design H3
Order number 88131423

USP

  • Rustproof, high-quality, hygienic stainless steel (interior and exterior).
  • Rounded worktop, turned down all-round,
    protection against the ingress of dirt/water.
  • Deep-drawn heated well, seamlessly welded.
  • Interior tightly welded with seamlessly deep-drawn support rails in the hygienic design H3.
  • Double-walled insulation, low loss of heat/cold.
  • Self-closing doors, transport lock can be operated with one hand.
  • Mobile with robust, fixable castors and a pushing handle.
  • Corner bumpers for impact protection as well as a shockproof switching element.
  • Quick and easy cleaning, with a central drainage cock for all wells and removable door seals.
The Rieber System Basis

Our versatile GN operating system

The container standard in every commercial kitchen - our high-quality and robust Gastronorm range offers you an extensive selection of different container & lid variants that you can combine and use flexibly for every application. Ideal for hygienic and standardised storage, transport and serving of food - in almost any size and depth, universally compatible in all GN systems and products.

Rieber has a large number of unique innovations in addition to the "GN classics". Like our highly efficient cooking pot thermoplates® made of conductive SWISS-PLY multi-layer material or our 100% reliable watertight plug-in lid as well as the vacuumable vaculid® lid.

GN Containers
GN Cooking Pot
GN Lids
To the product
QR-CODE for digital reusable organization
Our food flow
Let us inspire you.
Accessories
To the product
Core temperature sensor ETI Blue LE
To the product
Room temperature sensor CHECK
To the product
All-round bumper - Norm trolley 3
To the product
GN cooling pellet CNS 1/1 - 30mm
To the product
GN cooling pellet plastic 1/1 - orange
To the product
basket strainer in s/s for drainpipe
To the product
Longlife Digital Thermometer 0 - 120°C
To the product
Drawbar/coupl. - Norm trolley 3-comp.
To the product
Storage surface CNS hinged - front
To the product

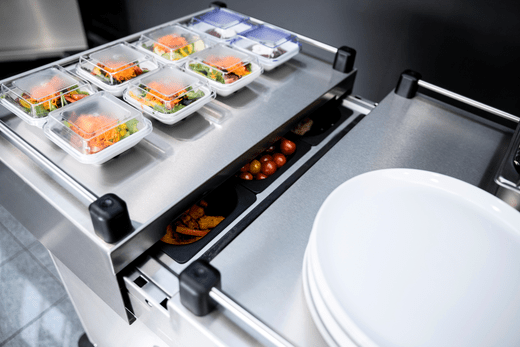

Sliding cover, pull-out - Norm trolley 3
To the product
Hinged lid - Norm trolley 3
To the product
Gantry light/heat - Norm trolley & ZUB 3
To the product
Gantry light - Norm trolley & ZUB 3
To the product
QR Code Sticker for CHECK CLOUD
Overview

The food transport trolley made of stainless steel, 3 deep-drawn heated wells on top, 3 heated GN 1/1 cupboard cabinets at the bottom (H3, each with 8 pairs of support rails) - with 2 fixed castors and 2 swivel castors with a double brake.

Interested in this product?
