Order no. 85010503

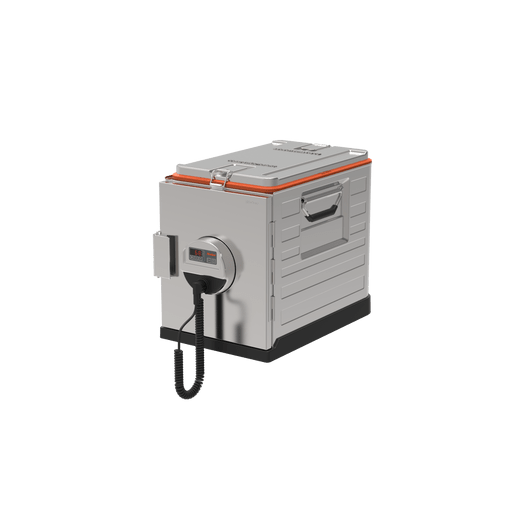

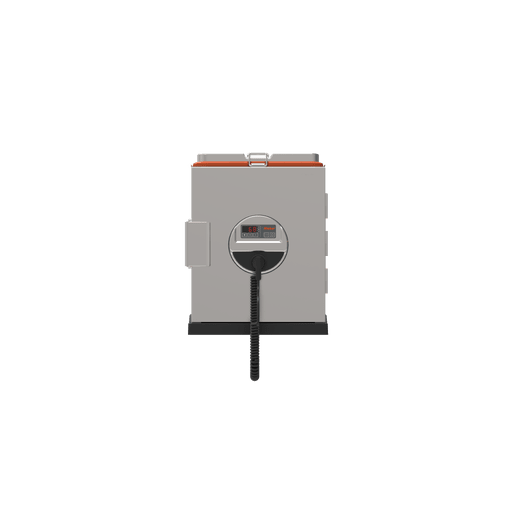

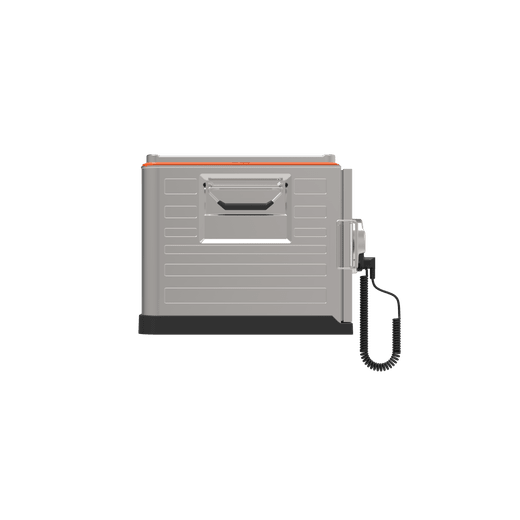

thermoport® CNS 1000-D circulating heat

Circulating air-heated frontloader transport box made of stainless steel, for direct serving via the removable lid on top, with controllable circulating air heating (max. +100°C), double-walled and tightly welded, with 7 seamlessly deep-drawn pairs of rails for the safe transport of food in GN containers (content with GN: max. 52 L).

Service videos Downloads
Product profile

The stackable toploader with heatable, precise and powerful circulating air heating (digitally controllable) is used for the safe transport of food in a GN system and for keeping the food hot. It is possible to serve directly from the top of the GN system with the lid removed. For the best food quality and complete transport safety.

Space-efficient configuration with GN containers and GN thermoplates® in combination with the transport-safe, watertight press-in lid or in a vacuum with the vaculid® lid. Additional cooling option is possible with the insertion of GN 1/1 cooling pellets; the cold air is distributed evenly in the interior in pure circulating air mode.

Rieber thermoport® made of plastic and stainless steel can be stacked together and placed on the transport or serving trolleys – for slip-resistant and safe transport.

Retrofittable with a CHECK sensor for seamless and automatic temperature documentation during transport. Clear identification and connection to the CHECK CLOUD are possible with the QR code.

Properties
GTIN/EAN 4007537004552
Material stainless steel 1.4301 (CNS)
Weight 30 kg
Dimensions 410 x 645 x 530 mm
Heating range max. +90°C
Ambient temperature -20°C to +100°C
GN size GN 1/1
Support rails 7
Distance between supports 55 mm
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 810 W
Plug type Safety switch (type F)
Country-specific plug on request
Cable type spiral cable
Cable length 1500 mm
Protection class IPX3
Functions heated
Heating/cooling mode circulating air heating
Capacity with GN containers 52 L
Order number 85010503

USP

  • Rustproof, high-quality, hygienic stainless steel (interior and exterior).
  • Interior tightly welded with seamlessly deep-drawn support rails in hygienic design H2.
  • Lid with a moulded stacking recess and all-round seal suitable for use with foodstuffs.
  • Double-walled insulation, low loss of heat/cold.
  • Uniform heat distribution, even when fully loaded.
  • Insulated, recessed, hinged handles and high-quality spring door lock.
  • Replaceable stacking and floor protection rails.
  • All-round bumper and lid seal for impact protection.
  • Suitable for outdoor use
  • Removable heating system, splash-proof, IPX4
  • Removable door seal/heating system, quick and easy cleaning.
  • Suitable for cleaning with a high-pressure cleaner without the heating system
The Rieber System Basis

Our versatile GN operating system

The container standard in every commercial kitchen - our high-quality and robust Gastronorm range offers you an extensive selection of different container & lid variants that you can combine and use flexibly for every application. Ideal for hygienic and standardised storage, transport and serving of food - in almost any size and depth, universally compatible in all GN systems and products.

Rieber has a large number of unique innovations in addition to the "GN classics". Like our highly efficient cooking pot thermoplates® made of conductive SWISS-PLY multi-layer material or our 100% reliable watertight plug-in lid as well as the vacuumable vaculid® lid.
