Order no. 88160301
ZUB 3 wells - handle face side

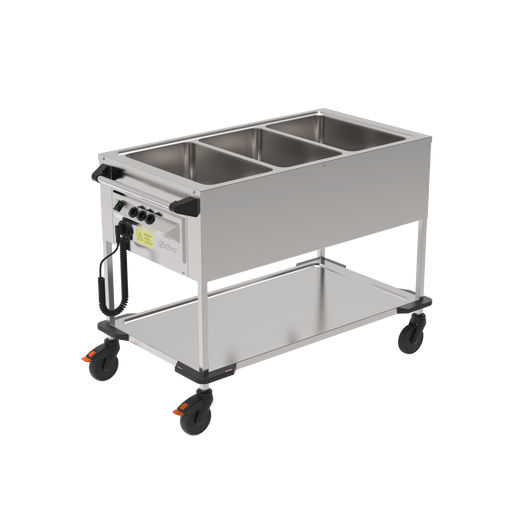

The delivery trolley made of stainless steel with 3 deep-drawn GN 1/1 heated wells on top, wet and dry heating, insulated on all sides, with a welded stainless steel shelf at the bottom - stainless steel castors, 2 swivel castors and 2 swivel castors with brakes.

Product profile

The robust stainless steel trolley with three separately controllable, electrically heated GN 1/1 heated wells is used for the safe transport, distribution on the conveyor and serving of food in a GN system. The universal delivery trolley for the best food quality at distribution stations. Can be heated reliably wet and dry; dry heating provides significant energy savings and less cleaning of the wells is required.

Space-efficient configuration with GN containers and GN thermoplates® in combination with the transport-safe, watertight press-in lid.
The functions can be customised to suit the requirements, with a gantry (lighting/heat), a hinged shelf on the long/face side, as well as a hinged work surface on the face side. An additional usable work surface in the substructure also provides space for thermoport® 50 and 100 transport boxes for the immediate refilling of food in a GN system thanks to the stable shelf.

For a complete solution on a food distribution conveyor in combination with other mobile products, such as the thermoport® made of plastic and stainless steel, various dispensers, tray and banquet trolleys as well as transport and serving trolleys.

Properties
GTIN/EAN 4007537004101
Production Made in Germany
Material stainless steel 1.4301
Weight 44,2 kg
Dimensions 1185 x 678 x 900 mm
Heating range +30°C to +110°C
GN depth 200 mm
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 1.410 W
Plug type Safety switch (type F)
Country-specific plug on request
Cable type spiral cable
Cable length 2500 mm
Protection class IPX4
Functions heated
Heating/cooling mode statically heated
Impact protection 4 corner bumpers
Wheel diameter 125 mm
Castors 2 fixed-; 2 swivel castors with brakes
Castor type Rustproof
Order number 88160301

USP

  • Rustproof, high-quality, hygienic stainless steel.
  • Rounded worktop, turned down all-round, protection against the ingress of dirt/water.
  • Deep-drawn heated well, seamlessly welded.
  • Insulated on all sides, low heat loss.
  • Mobile with robust, fixable castors and a pushing handle.
  • Corner bumpers for impact protection as well as a shockproof switching element.
  • Integrated drainage cock, quick and easy cleaning.
Rieber GN - Your system basis: flexible. durable. digital.

Our GN operating system is the standard in every commercial kitchen. With a wide range of Gastronorm containers and lids, it offers maximum flexibility for storage, transport, serving and more - hygienic, robust and available in many sizes and depths.

In addition to the tried and tested GN classics, Rieber focuses on innovation: from the efficient thermoplates® cooking pot made of SWISS-PLY multi-layer material to the 100% watertight push-fit lid and the vacuumable vaculid® lid. New: the revolutionary GN auto container, which saves around 60 % of storage space and enables automated processes via robotisation.

  • YourLogo GN - As unique as your business

We use the latest laser technology to personalise GN containers & lids with your individual logo - for clear recognition, a professional look and more individuality in the kitchen.

  • GN CONNECT - digitally organised in the CHECK TRACE reusable system

The lasered smart Rieber QR code, with the GS1 Digital Link - ensures full transparency, traceability and error-free & time-saving order picking.

Our food flow
Let us inspire you.
Accessories
To the product
Kern-Temperatur-Fühler CHECK
To the product
HING.SHELF COMPL. F.NARROW SIDE OF ZUB 3
To the product
basket strainer in s/s for drainpipe
To the product
HING.SHELF COMPL.F.ZUB 1,2,3,4 PARTS
To the product
HING.SHELF F.LONG SIDE OF ZUB 3
To the product
Gantry light - Norm trolley & ZUB 3
To the product
Gantry light/heat - Norm trolley & ZUB 3
To the product
QR Code Sticker for CHECK CLOUD
Overview

The delivery trolley made of stainless steel with 3 deep-drawn GN 1/1 heated wells on top, wet and dry heating, insulated on all sides, with a welded stainless steel shelf at the bottom - stainless steel castors, 2 swivel castors and 2 swivel castors with brakes.
