Order no. 88160303
ZUB 3 wells - handle long side

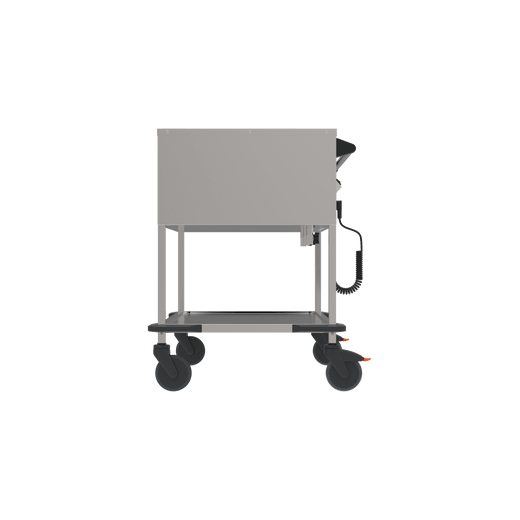

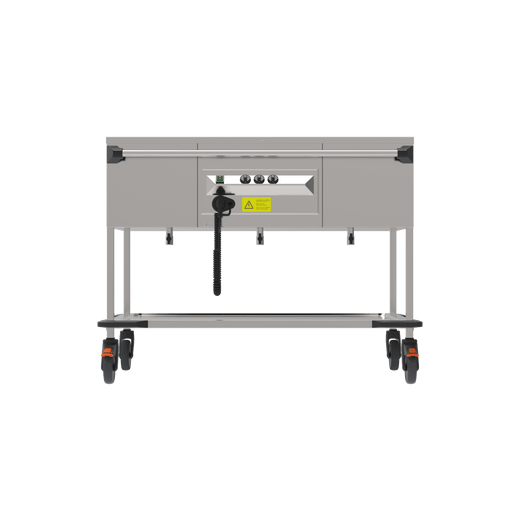

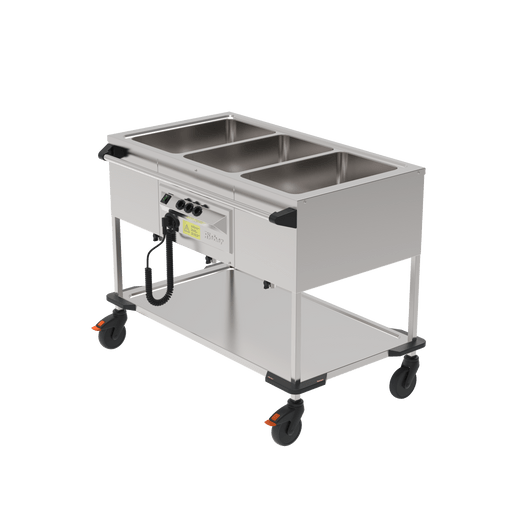

The delivery trolley made of stainless steel with 3 deep-drawn GN 1/1 heated wells on top, wet and dry heating, insulated on all sides, with a welded stainless steel shelf at the bottom - stainless steel castors, 2 swivel castors and 2 swivel castors with brakes.

Product profile

The robust stainless steel trolley with three separately controllable, electrically heated GN 1/1 heated wells is used for the safe transport, distribution on the conveyor and serving of food in a GN system. The universal delivery trolley for the best food quality at distribution stations. Can be heated reliably wet and dry; dry heating provides significant energy savings and less cleaning of the wells is required.

Space-efficient configuration with GN containers and GN thermoplates® in combination with the transport-safe, watertight press-in lid.
The functions can be customised to suit the requirements, with a gantry (lighting/heat), a hinged shelf on the long/face side, as well as a hinged work surface on the face side. An additional usable work surface in the substructure also provides space for thermoport® 50 and 100 transport boxes for the immediate refilling of food in a GN system thanks to the stable shelf.

For a complete solution on a food distribution conveyor in combination with other mobile products, such as the thermoport® made of plastic and stainless steel, various dispensers, tray and banquet trolleys as well as transport and serving trolleys.

Properties
GTIN/EAN 4007537004125
Material stainless steel 1.4301 (CNS)
Weight 44,2 kg
Dimensions 1185 x 678 x 900 mm
Heating range +30°C to +110°C
GN depth 200 mm
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 1.410 W
Plug type Safety switch (type F)
Country-specific plug on request
Cable type spiral cable
Cable length 2500 mm
Protection class IPX4
Functions heated
Heating/cooling mode statically heated
Impact protection 4 corner bumpers
Wheel diameter 125 mm
Castors 2 fixed-; 2 swivel castors with brakes
Castor type Rustproof
Order number 88160303

USP

  • Rustproof, high-quality, hygienic stainless steel.
  • Rounded worktop, turned down all-round, protection against the ingress of dirt/water.
  • Deep-drawn heated well, seamlessly welded.
  • Insulated on all sides, low heat loss.
  • Mobile with robust, fixable castors and a pushing handle.
  • Corner bumpers for impact protection as well as a shockproof switching element.
  • Integrated drainage cock, quick and easy cleaning.
The Rieber System Basis

Our versatile GN operating system

The container standard in every commercial kitchen - our high-quality and robust Gastronorm range offers you an extensive selection of different container & lid variants that you can combine and use flexibly for every application. Ideal for hygienic and standardised storage, transport and serving of food - in almost any size and depth, universally compatible in all GN systems and products.

Rieber has a large number of unique innovations in addition to the "GN classics". Like our highly efficient cooking pot thermoplates® made of conductive SWISS-PLY multi-layer material or our 100% reliable watertight plug-in lid as well as the vacuumable vaculid® lid.
