Order no. 87010201

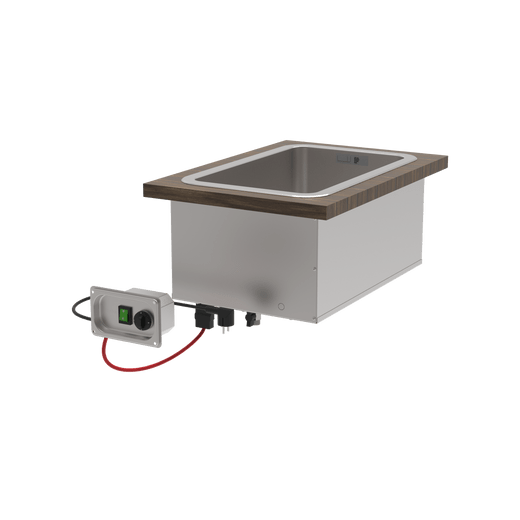

Built-in bain-marie 1/1 - panelling

Bain-marie made of stainless steel for insertion/welding in - deep-drawn GN basin 1/1 with wet heating, 200 mm deep with insulating panelling and a drainage cock.

Downloads
Product profile

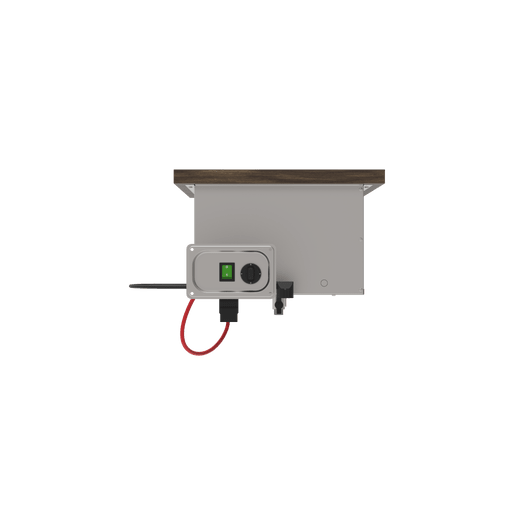

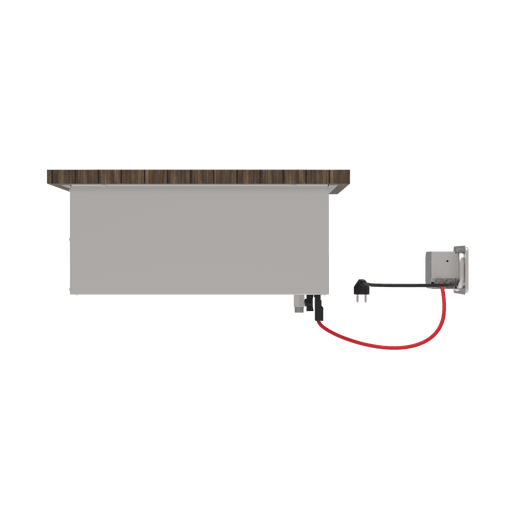

The heated well is insulated and electrically heated (with wet heating). It is equipped with a drainage cock with the drain facing downwards. The control panel has an on/off switch and a thermostat that can be used to control the temperature (from +30 to +110 °C). The lining of the heated well is provided for sub-counter fitting in an existing worktop. The heated well is inserted from above into the existing worktop cutout.

The heated well is suitable for GN containers with a maximum GN size of 1/1, 200 mm deep - ideal for the storage, holding and serving of food.

To prevent blockages and to allow undisrupted drainage, the stainless steel basket strainer is suitable for use in the drainpipe.

Properties
GTIN/EAN 4007537004231
Material stainless steel 1.4301 (CNS)
Weight 11,34 kg
Dimensions 370 x 574 x 228 mm
GN depth 200 mm
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 765 W
Plug type Safety switch (type F)
Cable type plain cable
Cable length 2000 mm
Functions heated
Heating/cooling mode statically heated
Switch panel cut-out 152 x 85 mm
Versions installation
External dimensions to bottom edge of drainage cock 370 x 574 x 326 mm
Table-top cut-out 356 x 556 mm, R50
Heated well, insulated all-round x
Order number 87010201

USP

  • Stainless steel, completely food-safe, odour-free, antibacterial and hygienic.
  • The heated well has an all-round flange and rounded corners.
  • Heated well and switch panel can be plugged in - for easy fitting and removal of the switch panel.
  • With a power cable, approx. 2 m long, with an earthed plug.
  • Splash-proof.
  • Easy and quick cleaning.
