  5. Built-in bain-marie 1/1 - without panel.
/
Order no. 87010202

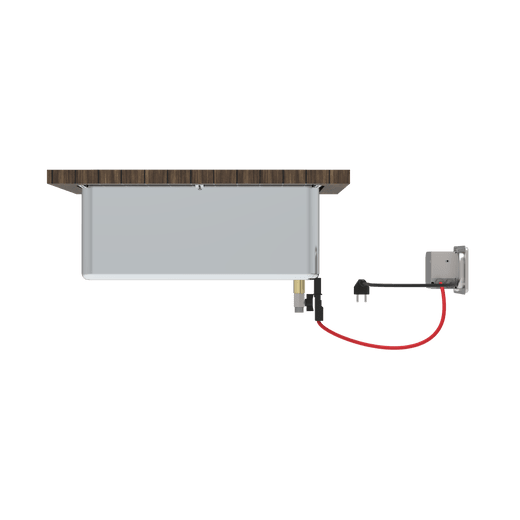

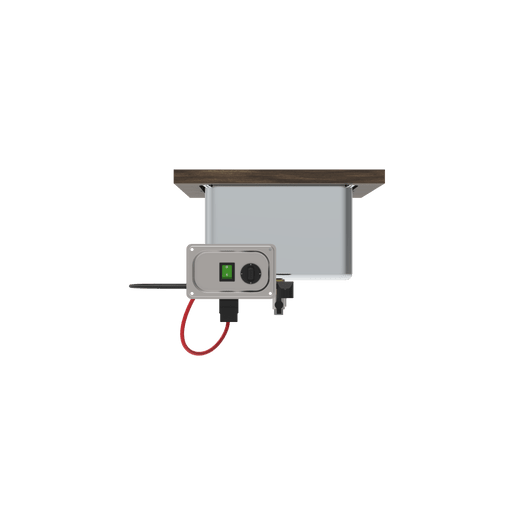

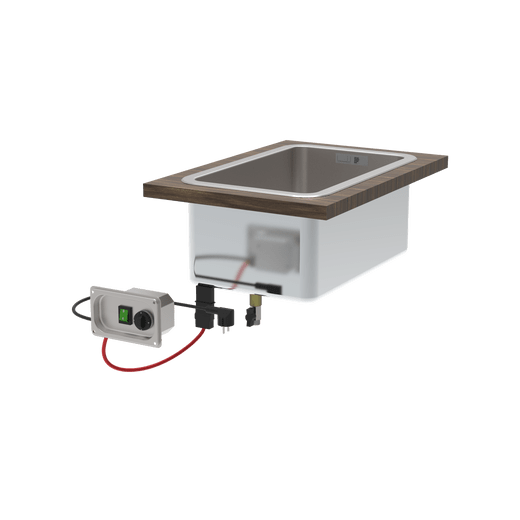

Built-in bain-marie 1/1 - without panel.

Bain-marie made of stainless steel for insertion/welding in - deep-drawn GN basin 1/1 with wet heating, 200 mm deep, with a drainage cock.

Downloads
Product profile

The heated well is insulated and electrically heated (with wet heating). It is equipped with a drainage cock with the drain facing downwards. The control panel has an on/off switch and a thermostat that can be used to control the temperature (from +30 to +110 °C). The heated well is inserted from above into the existing worktop cutout.

The heated well is suitable for GN containers with a maximum GN size of 1/1, 200 mm deep - ideal for the storage, holding and serving of food.

To prevent blockages and to allow undisrupted drainage, the stainless steel basket strainer is suitable for use in the drainpipe.

Properties
GTIN/EAN 4007537004248
Material stainless steel 1.4301 (CNS)
Weight 5,74 kg
Dimensions 370 x 574 x 228 mm
GN depth 200 mm
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 765 W
Plug type Safety switch (type F)
Country-specific plug on request
Cable type plain cable
Cable length 2000 mm
Functions heated
Heating/cooling mode statically heated
Switch panel cut-out 152 x 85 mm
Versions installation
External dimensions to bottom edge of drainage cock 370 x 574 x 326 mm
Table-top cut-out 356 x 556 mm, R50
Heated well, insulated all-round x
Order number 87010202

USP

  • Stainless steel, completely food-safe, odour-free, antibacterial and hygienic.
  • The heated well has an all-round flange and rounded corners.
  • Splash-proof.
  • Easy and quick cleaning.
The Rieber System Basis

Our versatile GN operating system

The container standard in every commercial kitchen - our high-quality and robust Gastronorm range offers you an extensive selection of different container & lid variants that you can combine and use flexibly for every application. Ideal for hygienic and standardised storage, transport and serving of food - in almost any size and depth, universally compatible in all GN systems and products.

Rieber has a large number of unique innovations in addition to the "GN classics". Like our highly efficient cooking pot thermoplates® made of conductive SWISS-PLY multi-layer material or our 100% reliable watertight plug-in lid as well as the vacuumable vaculid® lid.
