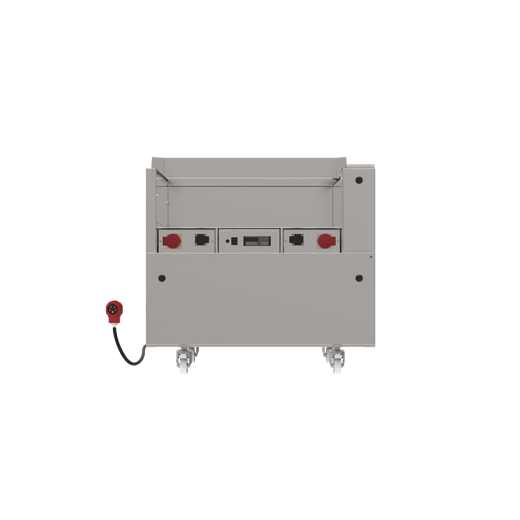

Order no. 91140474
acs 1000 ec - 2x varithek®

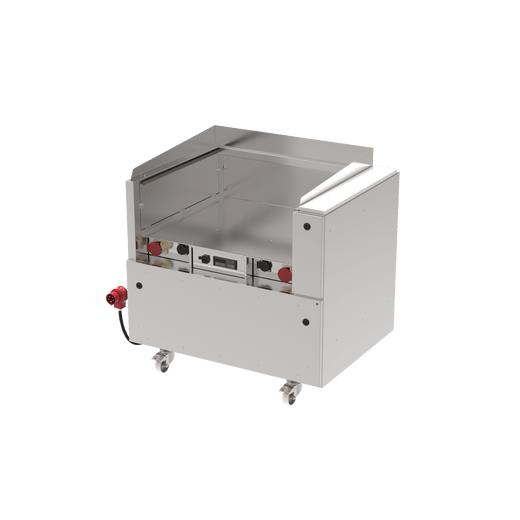

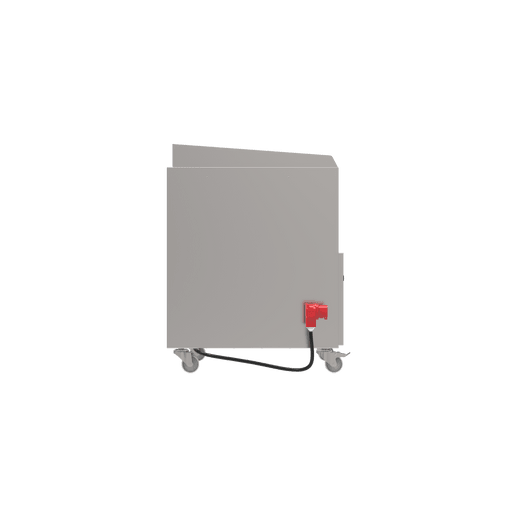

The mobile front cooking station with push & pull extraction technology made of stainless steel, left to right air flow (ec), a multi-layer filter system consisting of a grease, activated carbon and pollutant filter and a digital control - with an installation niche for 2 varithek® cooking modules (400 directly, 1/1 in combination with ASTsystem modules). Optionally extendible with a plasma generator, electrostatic filter unit and HEPA filter.

Product profile

The mobile station with integrated “air cleaning system” push & pull extraction technology, made entirely of high-quality stainless steel, offers unlimited flexibility and mobility when cooking and makes front cooking an experience – without any unwanted odours. With a digital control and a reliable, multi-layer filter system in the substructure consisting of a grease, activated carbon and pollutant filter that neutralises all odours.

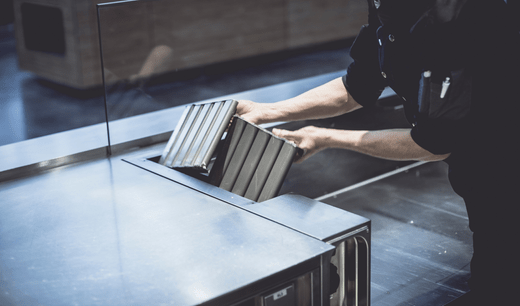

Thanks to the perfectly lateral air flow (ec) from left to right, a flame-retardant high-performance cyclone filter is used to remove the vapours formed during cooking from the grease and water-laden air right where they originate. An activated carbon filter binds the odours that occur. Filter stages can be optionally enhanced using filter accessories, with a plasma generator, electrostatic filter unit and HEPA filter.

The digital control offers a variety of useful functions, such as a display indicating the degree of wear of the filter elements (activated carbon filter), 4-level extraction power as well as a display of faults by means of continuous text. Different coloured LED lights indicate the operating status, an operating hours counter is also integrated and there is a safe alarm function with a buzzer.

In combination with the varithek® module system, the acs benefits from maximum flexibility for any type of preparations, together with the thermoplates® GN cooking pot made of unique SWISS-PLY multi-layer material for the best food quality. The easy insertion of the versatile varithek® modules (400 modules directly, 1/1 modules in combination with AST system modules), in the recessed installation niche for up to 2 modules allows you any combination of functions and the quick exchange of modules – from grilling, pasta and deep-frying modules to Ceran or induction modules.

All varithek® modules are standardised and can therefore be flexibly combined and interchanged, for precise insertion in the AST/EST system modules/GN port (1/1) or direct insertion with a system module (400) depending on the application.

Properties
GTIN/EAN 4007537169312
Production Made in Germany
Material stainless steel 1.4301
Dimensions 1000 x 760 x 1002 mm
Weight 105 kg
Ambient temperature +5°C to +40°C
Rated voltage 3N AC 400 V 50/60 Hz
Connected load 11.000 W
Plug type CEE-Plug 400V/16A
Country-specific plug on request
Cable type plain cable
Cable length 2000 mm
Protection class IPX4
Sockets 2 x 230 V Schuko, 2 x 400 V CEE
Functions heated
Wheel diameter 80 mm
Castors 2 fixed-; 2 swivel castors with brakes
Filter system Activated carbon filter
Extraction system push & pull extraction
Lighting gantry without gantry
Number of function modules 2
Niche dimensions 810 mm x 737 mm x 260 mm
Max. usage height 900 mm
Splash guard 3-sided
Order number 91140474

USP

  • 3-sided stainless steel panelling, rustproof, hygienic, brushed matt finish and securely welded.
  • Recessed stainless steel worktop with an installation niche.
  • Optimal hygiene thanks to the 3-sided splash guard.
  • Low-noise radial fan & activated carbon filter, eliminate odours & bacteria/microorganisms.
  • Safe to move with 4 swivel castors & locking brakes, DIN 18867, Part 8.
  • 2 moisture-proof sockets with a hinged cover for cooking modules on the left & right.
  • Side walls, splash guard, filter, fan and collection components, inspection flap and seal can be removed without tools.
  • High-performance grease separator & collection trays are dishwasher-safe.
Rieber GN - Your system basis: flexible. durable. digital.

Our GN operating system is the standard in every commercial kitchen. With a wide range of Gastronorm containers and lids, it offers maximum flexibility for storage, transport, serving and more - hygienic, robust and available in many sizes and depths.

In addition to the tried and tested GN classics, Rieber focuses on innovation: from the efficient thermoplates® cooking pot made of SWISS-PLY multi-layer material to the 100% watertight push-fit lid and the vacuumable vaculid® lid. New: the revolutionary GN auto container, which saves around 60 % of storage space and enables automated processes via robotisation.

  • YourLogo GN - As unique as your business

We use the latest laser technology to personalise GN containers & lids with your individual logo - for clear recognition, a professional look and more individuality in the kitchen.

  • GN CONNECT - digitally organised in the CHECK TRACE reusable system

The lasered smart Rieber QR code, with the GS1 Digital Link - ensures full transparency, traceability and error-free & time-saving order picking.
