Order no. 85011021
navioven 1/1

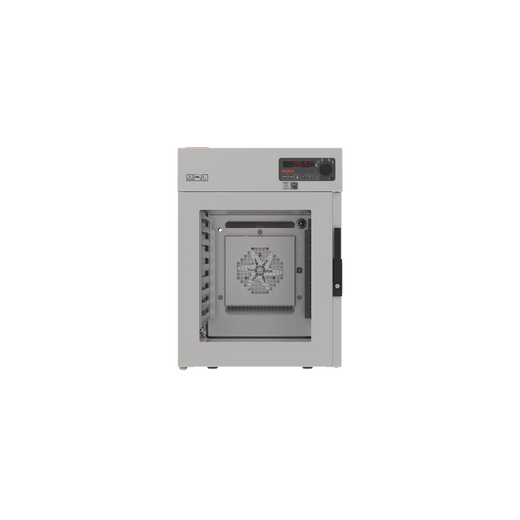

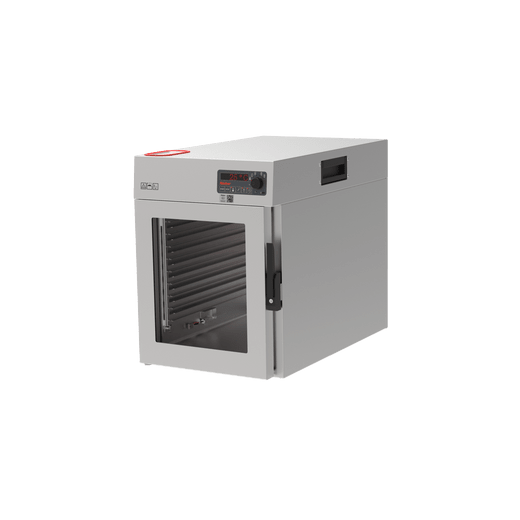

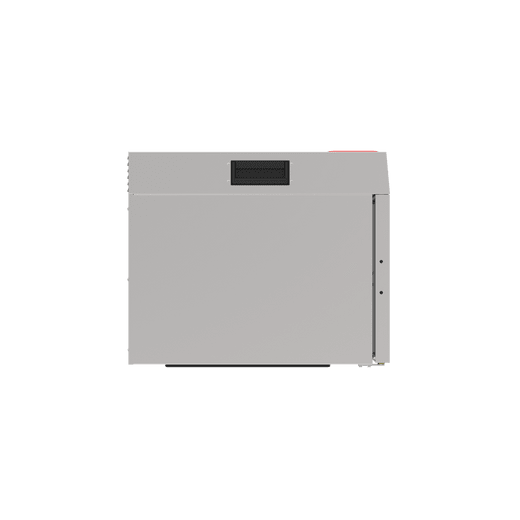

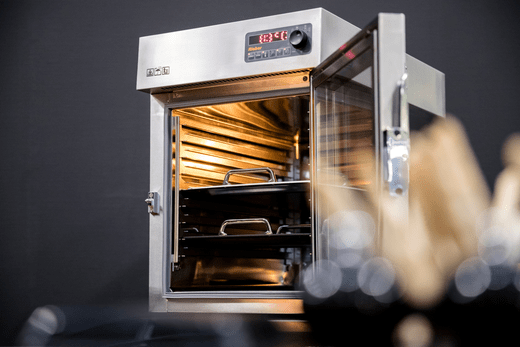

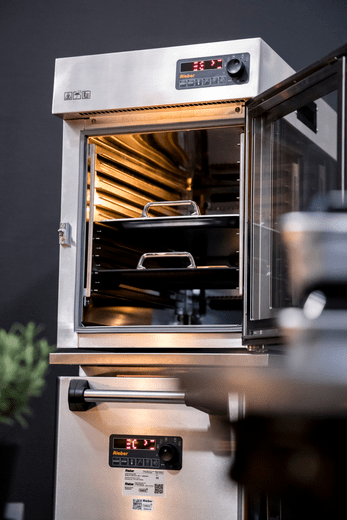

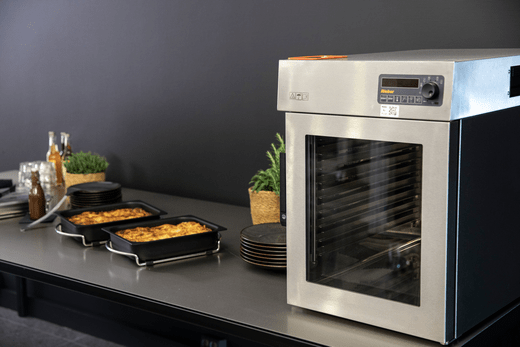

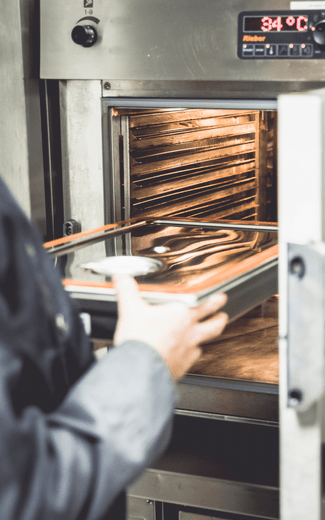

Table-top multifunctional oven, with different programs, for baking, cooking, core temperature cooking, braising and regenerating food, made of stainless steel, door with insulating glass, illuminated interior, with 7 pairs of rails attached to the sides as removable rails.

Product profile

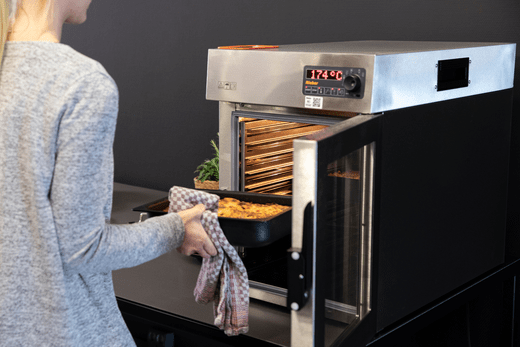

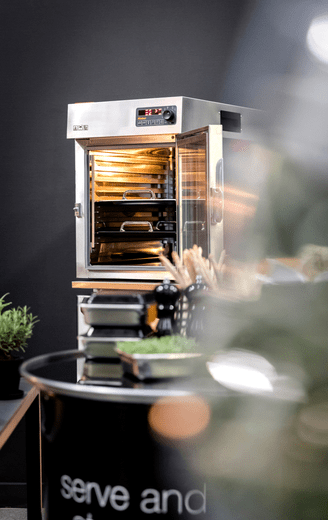

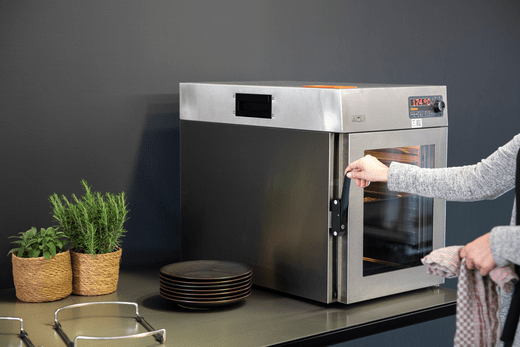

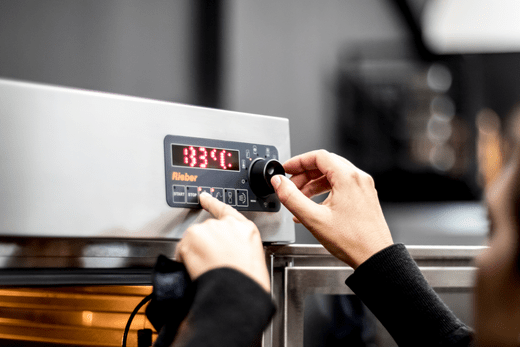

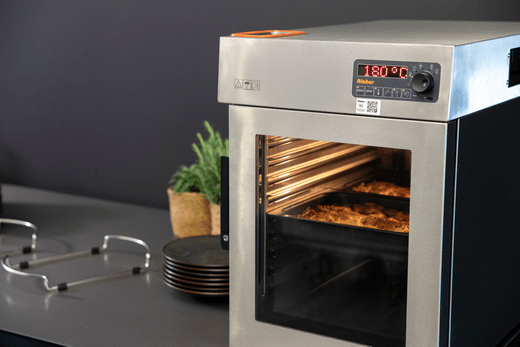

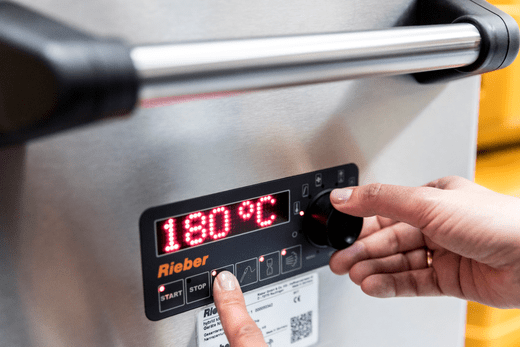

The mobile table-top unit with powerful, digitally controllable circulating air heating for a wide range of functions, ranging from gentle to intense – with a choice of programs for keeping food cold and hot, regenerating, cooking, braising and baking food in a GN system. Additionally with individually adjustable time, moistening and a target value for the chamber or core temperature. Visually appealing and functional with a glimpse into the illuminated interior thanks to the special insulated glass.

Through the space-efficient configuration with GN containers and GN thermoplates® in combination with the transport-safe, watertight press-in lid or in a vacuum with the vaculid® lid for low-temperature cooking.

The two cooking programs with the desired chamber or core temperature, with an integrated core temperature sensor. For the perfect preparation without food drying out, with controllable moistening. In addition, a refrigeration function through the pure circulating air program and with the insertion of GN 1/1 cooling pellets. All programs can also be saved, thus allowing for perfect food quality at any time.

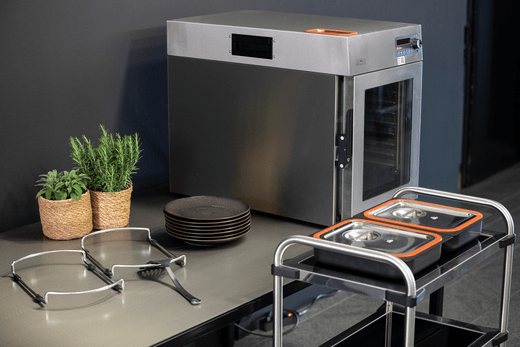

Safe and easy handling in combination with the Rieber thermoport® system. For universal mobile applications – catering, hotels, restaurants, the care sector and school catering. Also available on request as a built-in version for stationary use.

Properties
GTIN/EAN 4007537113506
Material stainless steel 1.4301 (CNS)
Weight 50 kg
Dimensions 460 x 775 x 632 mm
Heating range +20°C to +240°C
Ambient temperature 0°C to +80°C
Clear opening horizontally 330 mm
Clear opening vertically 37 mm
Pairs of support rails 9
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 3.300 W
Plug type Safety switch (type F)
Cable type plain cable
Cable length 1500 mm
Protection class IPX4
Functions heated
Heating/cooling mode circulating air heating
Support rail shape U-shaped with anti-tilt
Slide-through protection one side
Order number 85011021

USP

  • Rustproof, high-quality, hygienic stainless steel (interior and exterior).
  • Interior with smooth, rounded corners, highly polished in hygienic design H2.
  • Closed all-round with high-temperature insulation, low loss of heat/cold.
  • Uniform heat and cooling distribution, even when loaded.
  • Steam vent for moisture regulation.
  • Integrated, refillable water tank for moistening.
  • Easy to carry with ergonomic recessed handles.
  • Reliable, two-stage door lock.
  • Non-slip loading thanks to the mounting feet.
  • Removable support rails, quick and easy cleaning.
  • Hygienic surfaces, splash-proof (IPX4).
