Order no. 94060514
GN fillstation

Digital filling station for GN containers, equipped with a QR code reader, thermal transfer printer, display, integrated industrial scale, and camera – designed for gram-accurate, process-safe filling and complete traceability in food production.

Product profile

With the GN fillstation, digitalization begins directly in production. All relevant information is automatically transferred from the inventory management system and the daily production plan and linked during filling as a unique data package with the QR ID of the GN container and lid. In this way, containers, lids, and meal information are digitally “married” – ensuring maximum transparency, efficiency, and traceability right through to the plate.

The integrated scale supports gram-accurate portioning using up-to-date data from the connected inventory management system. In addition, a verification photo of the filling process is immediately assigned to the data record and stored in the system. Via the QR code, all production-relevant information can then be accessed – from item or menu line to recipe and production data, as well as weight, allergens, dietary requirements, and destination according to the production plan.

The GN fillstation is suitable for both manual and automated filling and can be seamlessly integrated into existing processes. By connecting to external inventory management systems, it creates a complete and consistent data foundation for production, picking, and logistics.

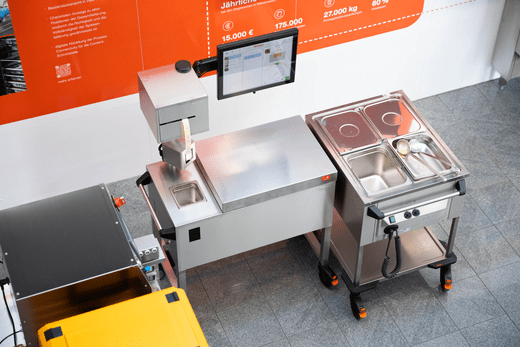

Ideal in combination with the GN coverstation: after digital and gram-accurate filling in the GN fillstation, the containers are automatically, cleanly, and reliably sealed – optionally also under vacuum or modified atmosphere packaging (MAP). This creates a continuous process for maximum efficiency, shelf life, and food safety.

In combination with the Rieber CHECK CLOUD platform and the CHECK TRACE reusable system, all data is centrally visualized, analyzed, and made available for seamless process documentation.

Properties
GTIN/EAN 4007537174576
Dimensions 974 x 640 x 1810 mm
Weight 92 kg
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 0,1 kW
Plug type Safety switch (type F)
Country-specific plug on request
Cable type plain cable
Cable length 6000 mm
Protection class IPX0
Wheel diameter 125 mm
Castors 4 swivel castors with brakes
Castor type Rustproof
Order number 94060514

USP

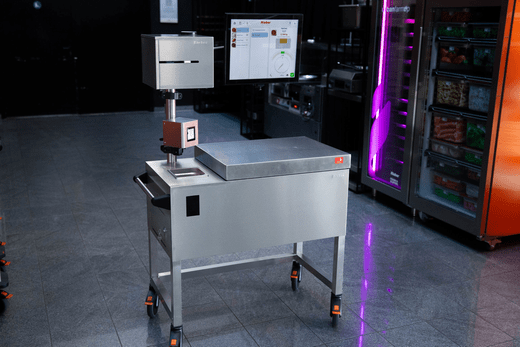

  • Mobile, robust stainless steel construction for continuous professional use.

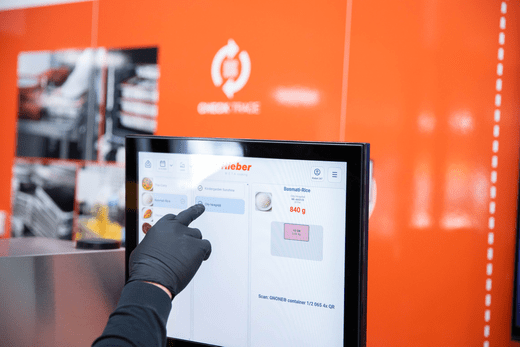

  • Equipped with an IP65-rated 19" touch screen (5:4 format) with a metal frame, height-adjustable.

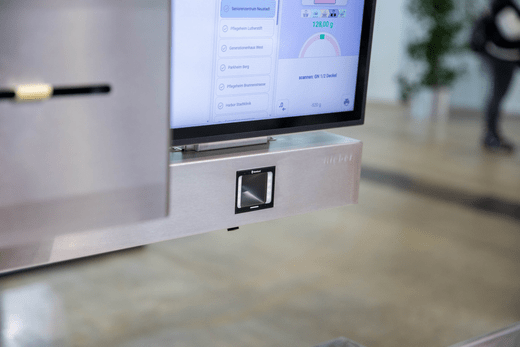

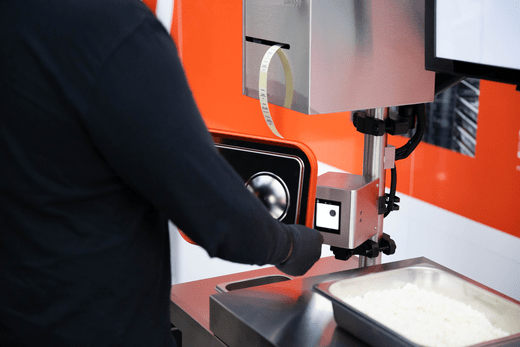

  • QR code scanner and camera securely integrated into the monitor arm.
  • Fitted with a 4G industrial router.
  • Designed for durability, featuring impact protection on the right, left, and rear – ideal for docking to a conveyor line.
  • Digitalization begins directly with filling and sealing in production.
  • Clear QR code linkage of GN container, lid, and meal information.
  • Automatic import of filling plans from inventory management systems.
  • Accessible via QR code: item/menu line, recipe and production data, date/time, batch, weight, allergens, dietary requirements, notes, as well as destination/route/facility.

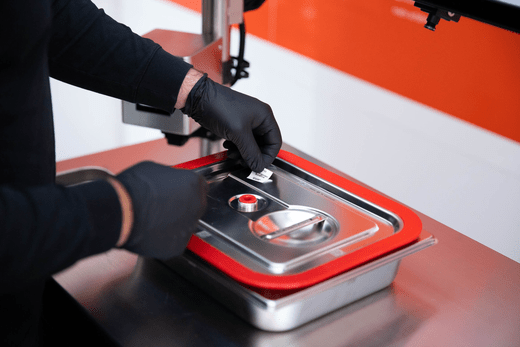

  • Fixed assignment of container ID and lid ID for maximum process reliability.
  • Seamless data foundation for picking, logistics, and traceability.
  • Direct integration with Rieber CHECK TRACE & CHECK CLOUD as well as external interfaces.
  • Fixed assignment of container ID and lid ID for maximum process reliability.
  • Photo documentation of the filling process stored directly within the data record.

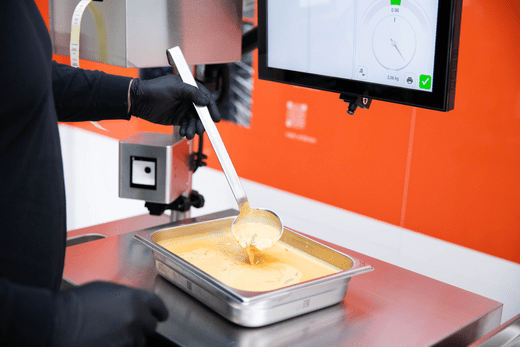

  • Gram-accurate portioning thanks to the integrated industrial scale.
  • Suitable for both manual and automated filling.
  • Optionally connectable to automatic dosing systems.
  • Mobile, equipped with robust and corrosion-resistant castors in accordance with DIN 18867, including 4 swivel castors with brakes.
Rieber GN - Your system basis: flexible. durable. digital.

Our GN operating system is the standard in every commercial kitchen. With a wide range of Gastronorm containers and lids, it offers maximum flexibility for storage, transport, serving and more - hygienic, robust and available in many sizes and depths.

In addition to the tried and tested GN classics, Rieber focuses on innovation: from the efficient thermoplates® cooking pot made of SWISS-PLY multi-layer material to the 100% watertight push-fit lid and the vacuumable vaculid® lid. New: the revolutionary GN auto container, which saves around 60 % of storage space and enables automated processes via robotisation.

We use the latest laser technology to personalise GN containers & lids with your individual logo - for clear recognition, a professional look and more individuality in the kitchen.

  • GN CONNECT - digitally organised in the CHECK TRACE reusable system

The lasered smart Rieber QR code, with the GS1 Digital Link - ensures full transparency, traceability and error-free & time-saving order picking.
