Order no. 85010816

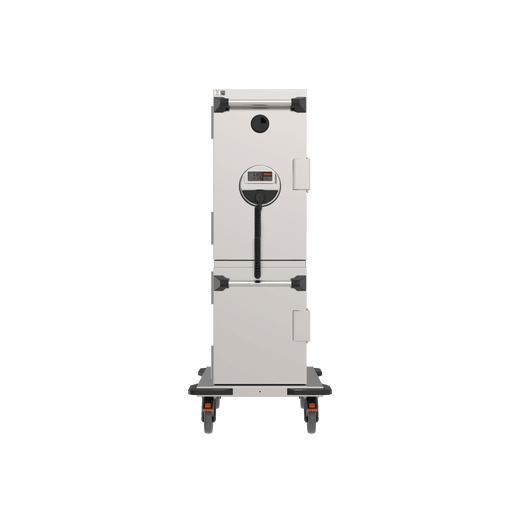

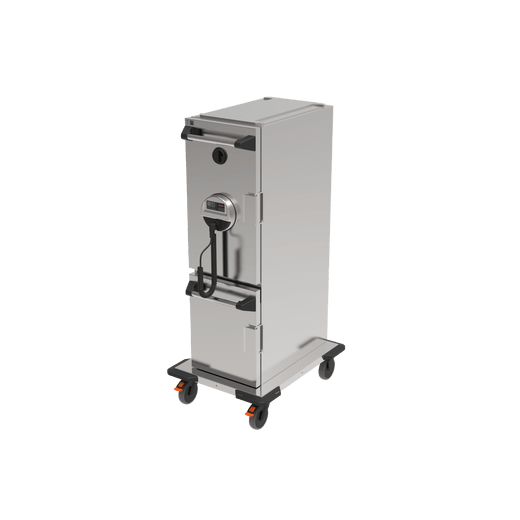

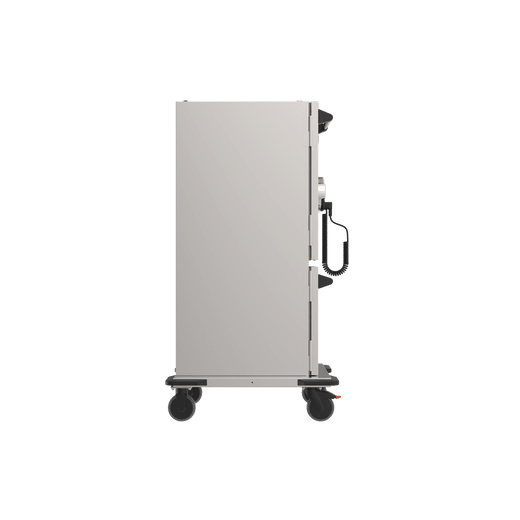

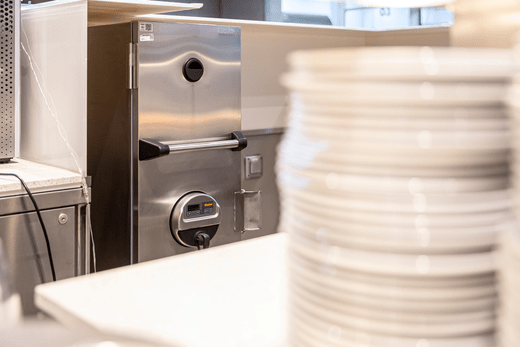

thermoport® CNS 3000 hybrid ak-W & pa-K

Mobile hybrid frontloader transport trolley made of stainless steel, with active circulating air heating for 16 pairs of rails at the top, 70 l and bottom with neutral/passive cooling with 8 pairs of rails, 44 l - for the safe transport of food in GN containers.

Product profile

The mobile frontloader with two completely separate temperature zones is used for the safe transport of hot and chilled food in a GN system. The mobile hybrid kitchen for the best food quality and complete transport safety.

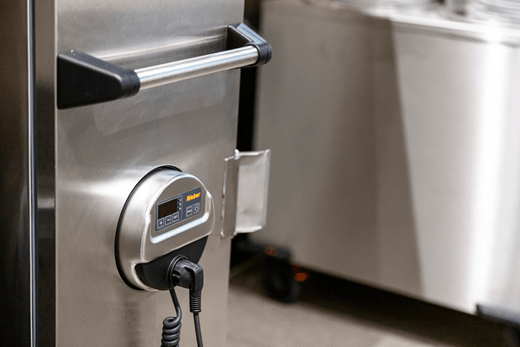

Food can be kept hot in the top section with the precise and powerful circulating air heating (digitally controllable). Bottom section with a neutral zone for passive cooling by inserting GN 1/1 cooling pellets.

Through the space-efficient configuration with GN containers and GN thermoplates® in combination with the transport-safe, watertight press-in lid or in a vacuum with the vaculid® lid for low-temperature cooking. Additional cooling option is also possible in the top section with the insertion of GN 1/1 cooling pellets; the cold air is distributed evenly in the interior in pure circulating air mode.

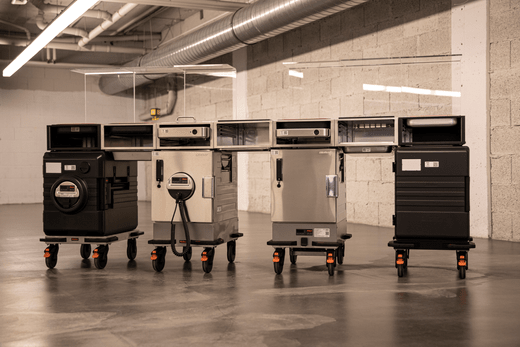

Rieber thermoport® made of plastic and stainless steel can be stacked together and placed on Rieber transport or serving trolleys – for slip-resistant and safe transport.
In addition, the transport securing device is particularly recommended for the thermoport® stainless steel.

Retrofittable with a CHECK sensor for seamless and automatic temperature documentation during transport. Clear identification and connection to the CHECK CLOUD are possible with the QR code.

Properties
GTIN/EAN 4007537137229
Material stainless steel 1.4301 (CNS)
Weight 66 kg
Dimensions 592 x 769 x 1448 mm
Heating range max. +100°C
Ambient temperature +2°C to +100°C
Number of compartments 2
Support rails 16 (warm), 8 (neutral)
Distance between supports 37 mm
Rated voltage 1N AC 230 V 50/60 Hz
Connected load 763 W
Plug type Safety switch (type F)
Country-specific plug on request
Cable type plain cable
Cable length 1500 mm
Protection class IPX4
Functions hybrid
Heating/cooling mode circulating air heating
Impact protection 4 corner bumpers
Wheel diameter 125 mm
Castors 2 fixed-; 2 swivel castors
Max. loading capacity 150 kg
Capacity with GN containers 114 L
Hygienic design H3
Order number 85010816

USP

  • Rustproof, high-quality, hygienic stainless steel (interior and exterior).
  • Interior tightly welded with seamlessly deep-drawn support rails in hygienic design H3.
  • Double-walled insulation, low loss of heat/cold.
  • Uniform heat and cooling distribution, even when fully loaded.
  • Steam slider for moisture regulation.
  • Mobile with robust, fixable castors and a push handle.
  • Bumpers for impact protection.
  • Suitable for outdoor use, splash-proof (IPX4).
  • Removable door seal/heating system, quick and easy cleaning.
  • High-pressure cleaner can be used on the interior without the heating system, splash-proof (IPX5).
